Same model may have multiple batches, images only for reference.

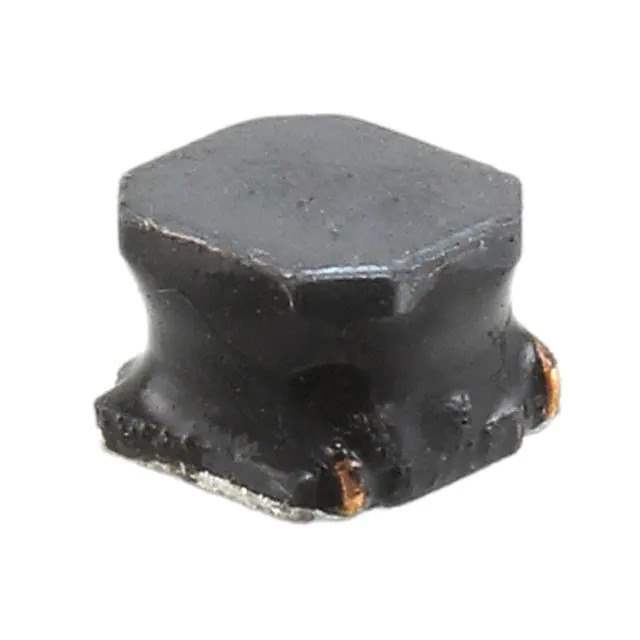

SRN5040-150M Real Image
Same model may have multiple batches, images only for reference.

SRN5040-150M

Part No SRN5040-150M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 15UH 1.8A 96 MOHM SMD
Datasheet
SRN5040-150M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series SRN5040
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 1.8 A
Current - Saturation (Isat) 2A
Shielding Semi-Shielded
DC Resistance (DCR) 96mOhm Max
Q @ Freq 17 @ 2.52MHz
Frequency - Self Resonant 15MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Base Product Number SRN5040
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
California Prop 65 Warning Information
Win Source Part Number 845577-SRN5040-150M
Ultra Librarian 3D Model Ultra Librarian SRN5040-150M CAD Model

Description

The SRN5040-150M is a drum core, wirewound fixed inductor designed for various applications. It is part of the Inductors, Coils, Chokes - Fixed Inductors category.

  • Inductance: 15µH
  • Tolerance: ±20%
  • Q Value: 17 @ 2.52MHz
  • Frequency Self Resonant: 15MHz
  • Package Type: surface mount
  • Packaging: tape and reel
  • Standard Package: 1,000 pieces
  • Manufacturer: Bourns Inc.
  • Product Status: active
  • REACH Regulations: unaffected
