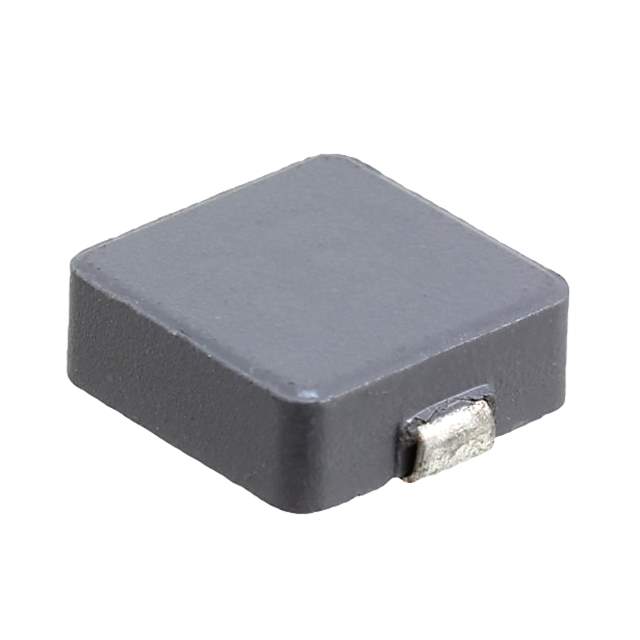

SRP1038A-5R6M Real Image
Same model may have multiple batches, images only for reference.

SRP1038A-5R6M

Part No SRP1038A-5R6M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 5.6UH 9A 19.3 MOHM SMD / 5.6 µH Shielded Drum Core, Wirewound Inductor 9 A 19.3mOhm Max Nonstandard
Datasheet
SRP1038A-5R6M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1038A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 5.6 µH
Tolerance ±20%
Current Rating (Amps) 9 A
Current - Saturation (Isat) 14A
Shielding Shielded
DC Resistance (DCR) 19.3mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 15MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Base Product Number SRP1038A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP1038A-5R6M-ND,118-SRP1038A-5R6MDKR,118-SRP1038A-5R6MCT,118-SRP1038A-5R6MTR
Standard Package 500
Win Source Part Number 981300-SRP1038A-5R6M
Ultra Librarian 3D Model Ultra Librarian SRP1038A-5R6M CAD Model

Description

The Bourns Inc. SRP1038A-5R6M is a fixed inductor designed for use in surface mount applications.

  • Manufacturer: Bourns Inc.
  • Product Category: Fixed Inductor
  • Mounting Style: Surface Mount
  • Core Material: Drum Core, Wirewound
  • Shielding: Shielded
  • Inductance: 5.6 µH
  • Tolerance: ±20%
  • Maximum Current Rating: 9A
  • Operating Temperature Range: -40°C to 150°C
  • Package: Nonstandard Size
  • Packaging: Tape and Reel
  • Failure Rate: -
  • Series: SRP1038A
  • Frequency Self-Resonant: 15MHz
  • Q @ Freq: 20 @ 100kHz
