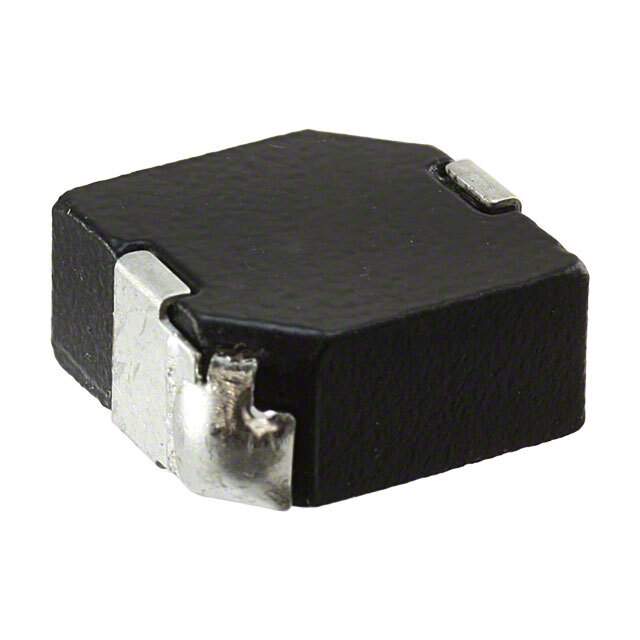

SRP1270-2R2M Real Image
Same model may have multiple batches, images only for reference.

SRP1270-2R2M

Part No SRP1270-2R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description SRP1270 Series - Shielded Power Inductors
Datasheet
SRP1270-2R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SRP1270
Packaging Reel - TR
Type Wirewound
Material - Core Iron
Inductance 2.2μH
Tolerance ±20%
Current Rating 22A
Current - Saturation 40A
Shielding Shielded
DC Resistance (DCR) 4.2 mOhm Max
Frequency - Self Resonant 25MHz
Operating Temperature Range -55°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.539" L x 0.539" W (13.70mm x 13.70mm)
Height - Seated (Maximum) 0.276" (7.00mm)
Win Source Part Number 1258813-SRP1270-2R2M
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Family Name SRP1270
Introduction Date January 25, 2008
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2019
Ultra Librarian 3D Model Ultra Librarian SRP1270-2R2M CAD Model

Description

The Bourns Inc. component with Win Source Part Number 1258813-SRP1270-2R2M is a wirewound type inductor with a shielding feature. Bold the product name (e.g., 1258813-SRP1270-2R2M) and manufacturer (e.g., Bourns Inc.).

  • Type: Wirewound Inductor
  • Shielding: Yes
  • Supply and Demand Status: Limited
  • Series: SRP1270
  • Packaging: Reel - TR
  • Operating Temperature: -55°C ~ 125°C
  • Package: Nonstandard
  • Current Rating: 22A
  • Inductance: 2.2μH
  • Mounting: SMD
  • Tolerance: ±20%
  • Material - Core: Iron
  • Current - Saturation: 40A
  • Frequency - Self Resonant: 25MHz
  • Test Frequency: 100kHz
  • Size: 0.539" L x 0.539" W (13.70mm x 13.70mm)
  • Family: SRP1270
  • DC Resistance (DCR): 4.2 mOhm Max
  • Manufacturer Homepage: www.bourns.com
  • Height - Seated (Maximum): 0.276" (7.00mm)
  • Alternative Parts: NPIM147P2R2MTRF, LSRHL1205-2R2, FMPI141365-2R2MU
  • Introduction Date: January 25, 2008
  • ECCN: EAR99
  • Country of Origin: Taiwan
  • Estimated EOL Date: 2019
  • Halogen-Free: Yes
