Same model may have multiple batches, images only for reference.

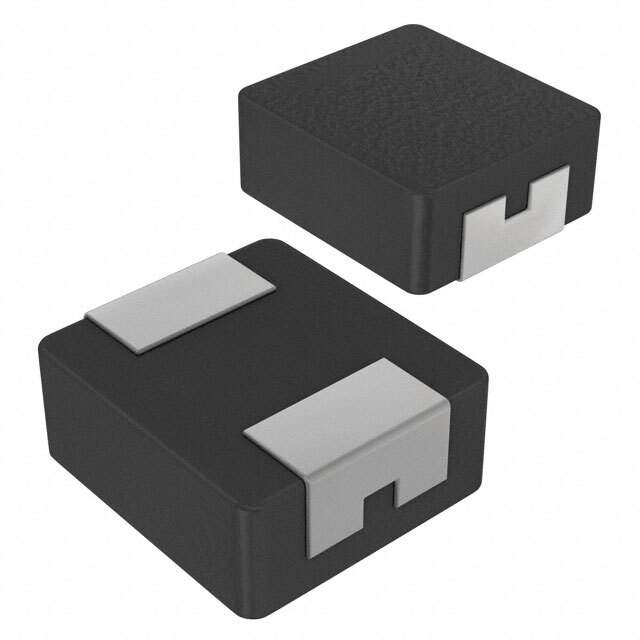

SRP4020TA-6R8M Real Image
Same model may have multiple batches, images only for reference.

SRP4020TA-6R8M

Part No SRP4020TA-6R8M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 6.8UH 2.1A 172MOHM SMD / 6.8 µH Shielded Drum Core, Wirewound Inductor 2.1 A 172mOhm Max 2-SMD
Datasheet
SRP4020TA-6R8M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP4020TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 2.1 A
Current - Saturation (Isat) 2.8A
Shielding Shielded
DC Resistance (DCR) 172mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 24MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRP4020TA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP4020TA-6R8MDKR,SRP4020TA-6R8MCT,SRP4020TA-6R8MTR
Standard Package 3,000
Win Source Part Number 978433-SRP4020TA-6R8M
Ultra Librarian 3D Model Ultra Librarian SRP4020TA-6R8M CAD Model

Description

The SRP4020TA-6R8M is a shielded, fixed inductor from the SRP4020TA series of drum core, wirewound inductors.

  • Series: SRP4020TA
  • Type: Drum Core, Wirewound, Shielded, Fixed Inductor
  • Inductance: 6.8 µH
  • Tolerance: ±20%
  • Current Rating: 2.1A
  • DC Resistance (DCR): 172mOhm Max
  • Q @ Freq: 10 @ 100kHz
  • Self-Resonant Frequency: 24MHz
  • Package/Case: 2-SMD
  • Supplier Device Package: 2-SMD
  • Material-Core: Carbonyl Powder
  • Temperature Range: -40℃ to 150℃
  • REACH: Unaffected
