Same model may have multiple batches, images only for reference.

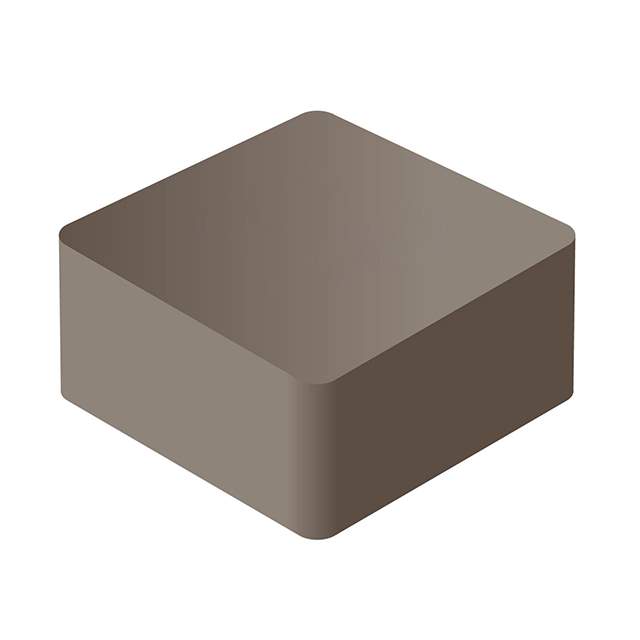

SRP4030FA-4R7M Real Image
Same model may have multiple batches, images only for reference.

SRP4030FA-4R7M

Part No SRP4030FA-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 5.1A 44.1MOHM SM / 4.7 µH Shielded Drum Core, Wirewound Inductor 5.1 A 44.1mOhm Max Nonstandard
Datasheet
SRP4030FA-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP4030FA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 5.1 A
Current - Saturation (Isat) 4.2A
Shielding Shielded
DC Resistance (DCR) 44.1mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 27MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.161" L x 0.161" W (4.10mm x 4.10mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRP4030FA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names SRP4030FA-4R7MDKR,SRP4030FA-4R7MCT,SRP4030FA-4R7MTR
Standard Package 2,000
Win Source Part Number 984731-SRP4030FA-4R7M
Ultra Librarian 3D Model Ultra Librarian SRP4030FA-4R7M CAD Model

Description

The Bourns Inc. SRP4030FA series is a drum core, wirewound type inductor with a nonstandard package.

  • Shielding: Shielded
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Core Material: Iron Powder
  • Q @ Freq: 10 @ 100kHz
  • Frequency Self-Resonant: 27MHz
  • DC Resistance (DCR): 44.1mOhm Max
  • Current Rating: 5.1 A
  • AEC-Q200: Yes
