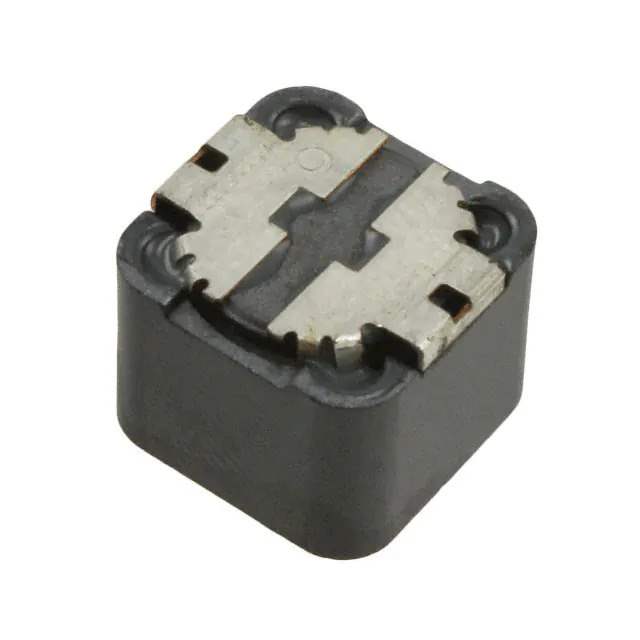

SRR1210-220M Real Image
Same model may have multiple batches, images only for reference.

SRR1210-220M

Part No SRR1210-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 5.2A 38 MOHM SMD / 22 μH Shielded Drum Core, Wirewound Inductor 5.2 A 38mOhm Max Nonstandard
Datasheet
SRR1210-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series SRR1210
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 5.2 A
Current - Saturation (Isat) 4.5A
Shielding Shielded
DC Resistance (DCR) 38mOhm Max
Q @ Freq 16 @ 2.52MHz
Frequency - Self Resonant 8MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Base Product Number SRR1210
Standard Package 250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
California Prop 65 Warning Information
Win Source Part Number 851695-SRR1210-220M
Ultra Librarian 3D Model Ultra Librarian SRR1210-220M CAD Model

Description

The SRR1210-220M is a drum core, wirewound inductor from Bourns Inc.

  • Product Name: SRR1210-220M
  • Series: SRR1210
  • Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Inductance: 22 μH
  • Tolerance: ±20%
  • Shielding: Shielded
  • Seated Height: 0.394" (10.00mm) max
  • Mounting Type: Surface Mount
  • Packaging: Tape & reel
  • DC Resistance (DCR): 38mOhm max
  • Current Rating: 5.2A
  • Operating Temperature: -40°C to 125°C
  • Core Material: Ferrite
  • Self-Resonant Frequency: 8MHz
  • Standard Package: 250 pcs
  • Manufacturer: Bourns Inc.
