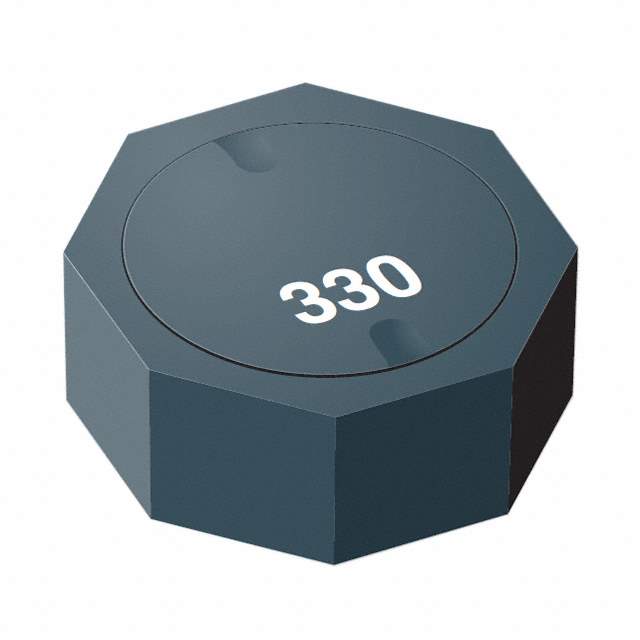

Same model may have multiple batches, images only for reference.

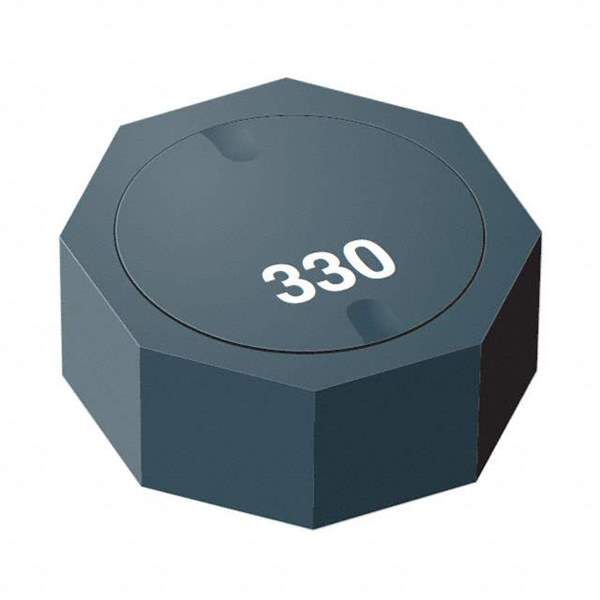

SRU1048A-150Y Real Image
Same model may have multiple batches, images only for reference.

SRU1048A-150Y

Part No SRU1048A-150Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 15UH 3.2A 40 MOHM SMD / 15 µH Shielded Drum Core, Wirewound Inductor 3.2 A 40mOhm Max Nonstandard
Datasheet
SRU1048A-150Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU1048A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±30%
Current Rating (Amps) 3.2 A
Current - Saturation (Isat) 2.7A
Shielding Shielded
DC Resistance (DCR) 40mOhm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 14MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.201" (5.10mm)
Base Product Number SRU1048A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRU1048A-150Y-ND,SRU1048A-150YTR,SRU1048A-150YCT,SRU1048A-150YDKR
Standard Package 600
Win Source Part Number 998582-SRU1048A-150Y
Ultra Librarian 3D Model Ultra Librarian SRU1048A-150Y CAD Model

Description

The SRU1048A-150Y is a drum core, wirewound inductor that is shielded with a ferrite core material. It has an inductance of 15 microhenries and a tolerance of ±30%.

  • Core Type: Drum Core, Wirewound
  • Shielding: Shielded
  • Core Material: Ferrite
  • Inductance: 15 µH
  • Tolerance: ±30%
  • DC Resistance (DCR): 40 mOhm Max
  • Q @ Freq: 30 @ 2.52MHz
  • Frequency - Self Resonant: 14 MHz
  • Package / Case: Nonstandard
  • Height - Seated (Max): 0.201 inches (5.10mm)
  • Current Rating: 3.2A
  • Suitable for: Power Supplies, DC-DC Converters, and Filtering Circuits.
  • AEC-Q200: Rated
