5082-7656
Same model may have multiple batches, images only for reference.

5082-7656

Part No 5082-7656
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric

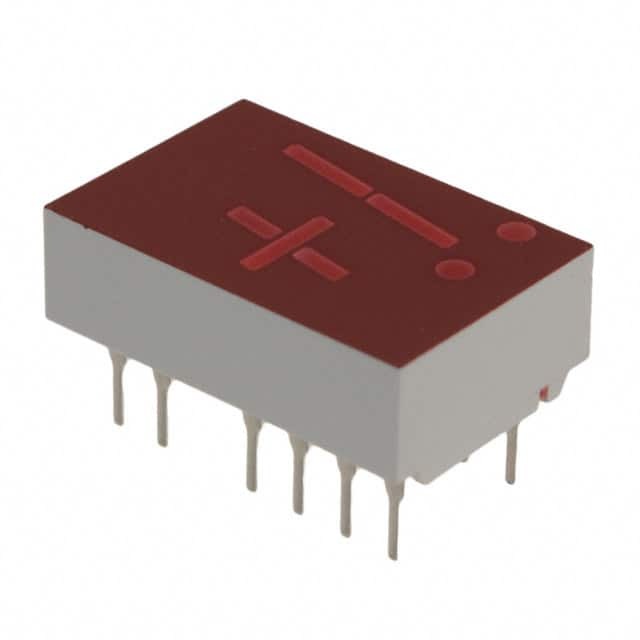

Description DISP 7SEG 0.43" OV/FL RED 14DIP / Display Modules - LED Character and Numeric Red 7-Segment +/-1 (overflow) Character Universal 2.1V 20mA 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) 14-DIP (0.300", 7.62mm), 12 Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Character and Numeric
Mfr Broadcom Limited
Package Tube
Product Status Obsolete
Number of Characters +/-1 (overflow)
Size / Dimension 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm)
Digit/Alpha Size 0.43" (11.00mm)
Display Type 7-Segment
Common Pin Universal
Color Red
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Millicandela Rating 1.12mcd
Wavelength - Peak 635nm
Power Dissipation (Max) 105mW
Package / Case 14-DIP (0.300", 7.62mm), 12 Leads
Base Product Number 5082-76
Standard Package 200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.20.0040
Win Source Part Number 856340-5082-7656
Ultra Librarian 3D Model Ultra Librarian 5082-7656 CAD Model

Description

The 856340-5082-7656 is a red LED character and numeric component in the optoelectronics category.

  • Display Type: 7-segment
  • Digit/Alpha Size: 0.43 inches
  • Millicandela Rating: 1.12mcd
  • Forward Voltage: 2.1V
  • Current Test: 20mA
  • Peak Wavelength: 635nm
  • Package: tube
  • Standard Package: 200 pieces
  • Power Dissipation: 105mW
  • Pin Configuration: common pin
  • Status: obsolete product from Broadcom Limited
