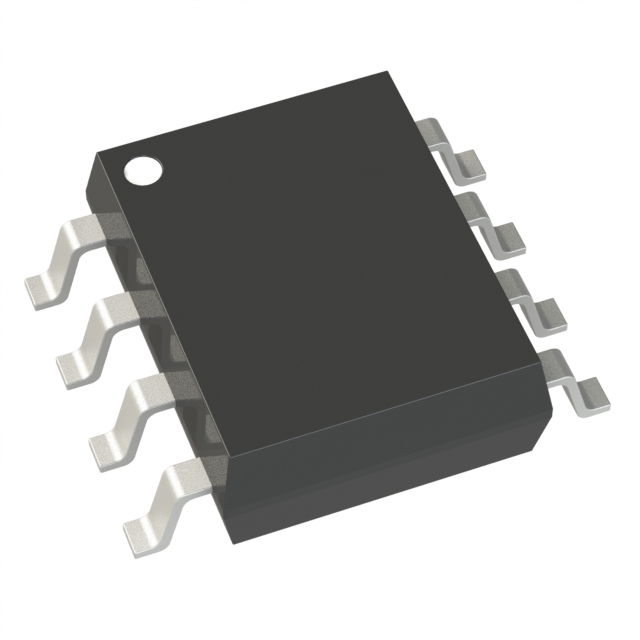

Same model may have multiple batches, images only for reference.
ACFL-6211U-500E Broadcom Limited – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ACFL-6211U-500E

Part No ACFL-6211U-500E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV 2CH PUSH PULL 12-SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Channels 2
Inputs - Side 1/Side 2 1/1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 15kV/µs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 10 mA
Propagation Delay tpLH / tpHL (Max) 35ns, 35ns
Rise / Fall Time (Typ) 10ns, 10ns
Voltage - Forward (Vf) (Typ) 1.5V
Current - DC Forward (If) (Max) 20mA
Voltage - Supply 3V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Case / Package 12-BSOP (0.295", 7.50mm Width)
Supplier Device Package 12-SO
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1570124-ACFL-6211U-500E
Ultra Librarian 3D Model Ultra Librarian ACFL-6211U-500E CAD Model
