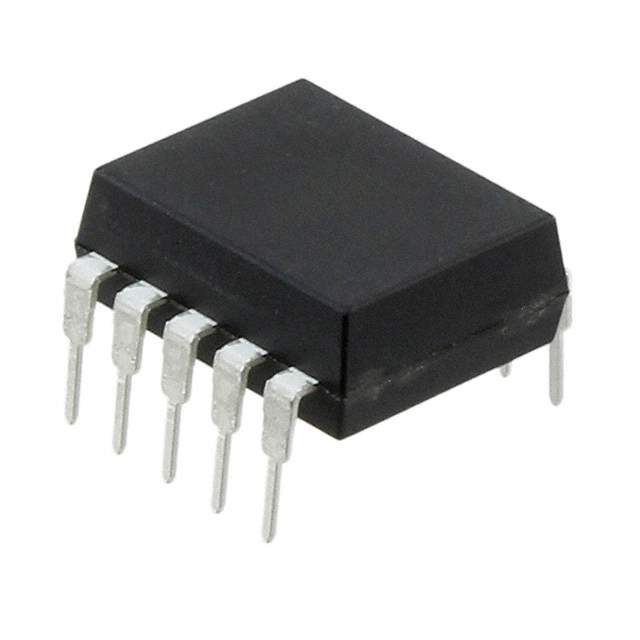

ACNV2601-000E Real Image
Same model may have multiple batches, images only for reference.

ACNV2601-000E

Part No ACNV2601-000E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 7.5KV OPEN COLL 10DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Tube
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 7500Vrms
Common Mode Transient Immunity (Minimum) 20kV/μs
Input Type DC
Output Type Open Collector, Schottky Clamped
Output Current per Channel 50mA
Data Rate 10MBd
Propagation Delay tpLH / tpHL (Maximum) 80ns, 80ns
Rise / Fall Time (Typ) 25ns, 10ns
Voltage - Forward (Vf) (Typ) 1.64V
Current - DC Forward (If) (Maximum) 20mA
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range -40°C ~ 105°C
Mounting Style Through Hole
Package 10-DIP (0.433", 11.01mm)
Manufacturer Package 10-DIP
Win Source Part Number 766914-ACNV2601-000E
Popularity Medium
Supply and Demand Status Balance
Quantity per package 175
Family Name ACNV2601
Introduction Date April 19, 2010
ECCN EAR99
Country of Origin Singapore, Thailand
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian ACNV2601-000E CAD Model

Description

The Broadcom Limited ACNV2601-000E is an optoisolator electronic component.

  • Data Rate: 10MBd
  • Voltage Isolation: 7500Vrms
  • Common Mode Transient Immunity: 20kV/μs
  • Propagation Delay tpLH / tpHL (Maximum): 80ns, 80ns
  • Package: 10-DIP (0.433", 11.01mm)
  • Output Current per Channel: 50mA (Maximum)
  • Operating Temperature: -40°C ~ 105°C
  • Operating Supply Voltage: 4.5 V ~ 5.5 V
  • Supply and Demand: Balanced
  • Packaging: 175
