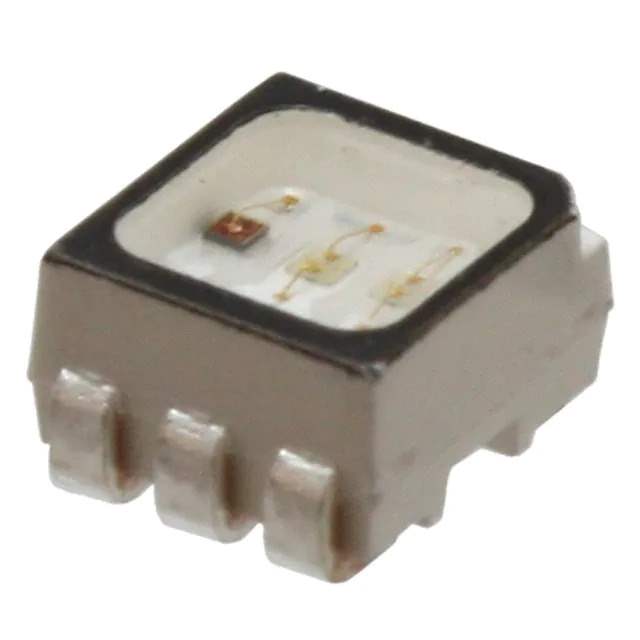

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Broadcom Limited
Package Tape & Reel
Product Status Active
Color Red, Green, Blue (RGB)
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 745mcd Red, 1600mcd Green, 380mcd Blue
Lens Style Square with Flat Top
Lens Size 2.30mm
Voltage - Forward (Vf) (Typ) 2.1V Red, 3.2V Green, 3.2V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 120°
Mounting Type Surface Mount
Wavelength - Dominant 622nm Red, 530nm Green, 470nm Blue
Wavelength - Peak 629nm Red, 521nm Green, 464nm Blue
Package / Case 6-SMD, J-Lead
Supplier Device Package 6-PLCC
Size / Dimension 3.00mm L x 2.80mm W
Height (Max) 2.00mm
Base Product Number ASMT-YTD2
Standard Package 2,000 pcs
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 852480-ASMT-YTD2-0BB02
Ultra Librarian 3D Model Ultra Librarian ASMT-YTD2-0BB02 CAD Model

Description

The ASMT-YTD2-0BB02 is a RGB LED indication discrete component from Broadcom Limited.

  • Category: Optoelectronics
  • Size: 3.00mm L x 2.80mm W
  • Viewing Angle: 120 degrees
  • Millicandela Rating (Red): 745mcd
  • Millicandela Rating (Green): 1600mcd
  • Millicandela Rating (Blue): 380mcd
  • Forward Voltage (Red): 2.1V
  • Forward Voltage (Green): 3.2V
  • Forward Voltage (Blue): 3.2V
  • Test Current: 20mA
  • Dominant Wavelength (Red): 622nm
  • Dominant Wavelength (Green): 530nm
  • Dominant Wavelength (Blue): 470nm
  • Peak Wavelength (Red): 629nm
  • Peak Wavelength (Green): 521nm
  • Peak Wavelength (Blue): 464nm
  • Mounting: Surface Mountable
  • Package: 6-SMD, J-Lead
  • Lens Style: Square with a Flat Top
  • Lens Size: 2.30mm
