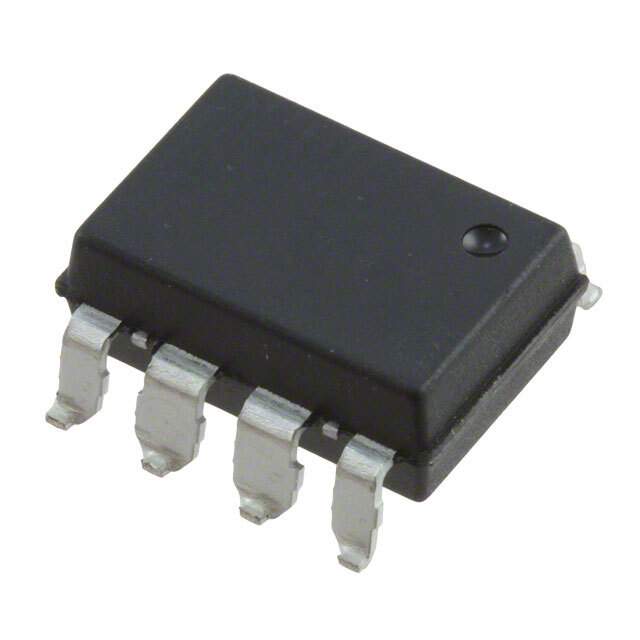

ASSR-1420-302E Real Image ASSR-1420-302E Real Image
Same model may have multiple batches, images only for reference.
ASSR-1420-302E Real Image ASSR-1420-302E Real Image
ASSR-1420-302E Real Image ASSR-1420-302E Real Image
Same model may have multiple batches, images only for reference.

ASSR-1420-302E

Part No ASSR-1420-302E
Manufacturer Broadcom Limited
Catalog Solid State Relays
Description RELAY SSR DPST 0.6A 8SMD GW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Circuit DPST (2 Form A)
Output Type AC, DC
Max On Resistance 1 Ohm
Load Current 600mA
Voltage - Input 1.3VDC
Voltage - Load 0 to 60 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-DIP Gull Wing
Relay Type Relay
Win Source Part Number 1018652-ASSR-1420-302E
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian ASSR-1420-302E CAD Model

Description

The Broadcom Limited 1018652-ASSR-1420-302E relay is a DPST (2 Form A) relay with a load current of 600mA and a voltage load range of 0 to 60 V.

  • On Resistance (Max): 1 Ohm
  • Voltage Input: 1.3VDC
  • Output Type: AC/DC
  • Mounting Technology: SMD (SMT)
  • Package: 8-DIP Gull Wing
  • Packaging: Tube/Rail
  • Category: Relays
  • Status: Active
  • Popularity: Medium
  • Quantity per Package: 50
