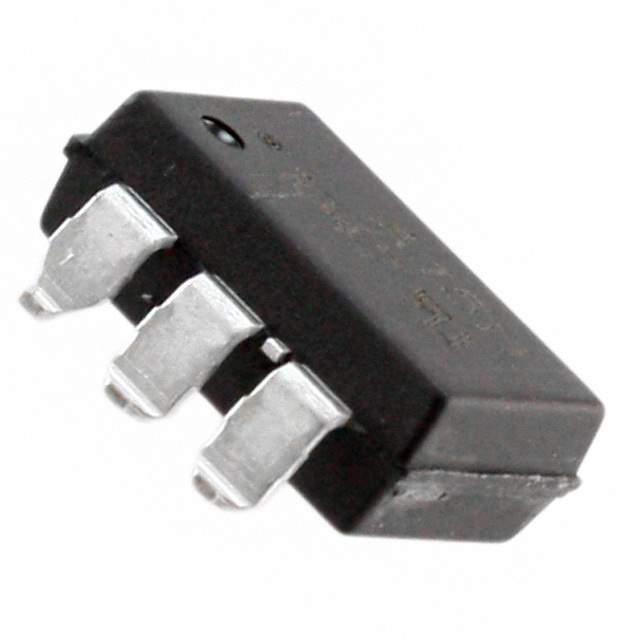

ASSR-5211-301E Real Image
Same model may have multiple batches, images only for reference.

ASSR-5211-301E

Part No ASSR-5211-301E
Manufacturer Broadcom Limited
Catalog Solid State Relays
Description RELAY SSR SPST SGL 0.2A 6SMD GW / Solid State Relay 25mA 1.7V DC-IN 0.2A 600V AC/DC-OUT 6-Pin PDIP Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Broadcom Limited
Series ASSR
Packaging Tube
Circuit SPST-NO (1 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 16 Ohm
Load Current 200mA
Voltage - Input 1.3VDC
Voltage - Load 0 ~ 600 V
Mounting SMD
Termination Style Gull Wing
Package 6-SMD (0.300", 7.62mm)
Manufacturer Package 6-DIP Gull Wing
Relay Type Relay
Win Source Part Number 768878-ASSR-5211-301E
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name ASSR-5211
Introduction Date November 01, 2005
ECCN EAR99
Country of Origin Thailand
Halogen Free Not Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ASSR-5211-301E CAD Model

Description

This electronic component, with Win Source Part Number 768878-ASSR-5211-301E, is manufactured by Broadcom Limited.

  • Category: Relays
  • Series: ASSR
  • Packaging: tube
  • Termination Style: gull wing
  • Relay Type: SPST-NO (1 Form A)
  • Load Current: 200mA
  • Voltage Load: 0 ~ 600 V
  • On-State Resistance (Maximum): 16 Ohm
  • Family Name: ASSR-5211
  • Popularity: Medium
  • Supply and Demand Status: limited
  • Estimated EOL Date: 2024
  • Quantity per Package: 50
