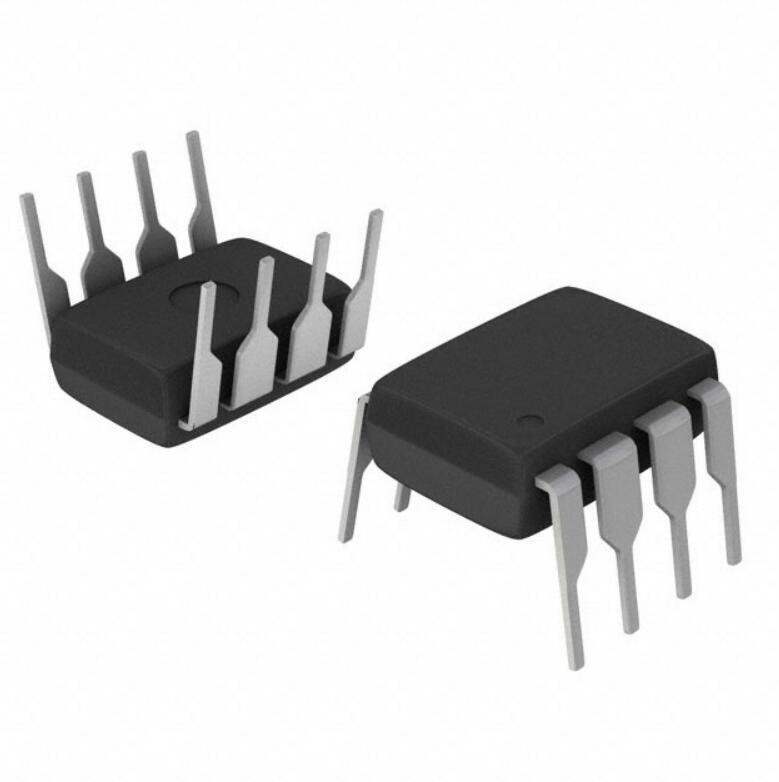

HCPL-5730

Part No HCPL-5730
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 1.5KV 2CH DARLNG 8-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197056-HCPL-5730
Win Source Part Number Cross
Manufacturer Broadcom Limited
Category Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Package Tube
Product Status Active
Number of Channels 2
Voltage - Isolation 1500VDC
Current Transfer Ratio (Min) 200% @ 5mA
Turn On / Turn Off Time (Typ) 2µs, 8µs
Output Type Darlington
Ultra Librarian 3D Model Ultra Librarian HCPL-5730 CAD Model

Description

The Broadcom Limited 1197056 is a high-performance optoisolator transistor with a photovoltaic output.

  • Output Type: Darlington
  • Number of Channels: 2
  • Current Transfer Ratio: 200% @ 5mA
  • Voltage Isolation: 1500VDC
  • Turn On Time: 2μs (Typical)
  • Turn Off Time: 8μs (Typical)
  • Package: tube
