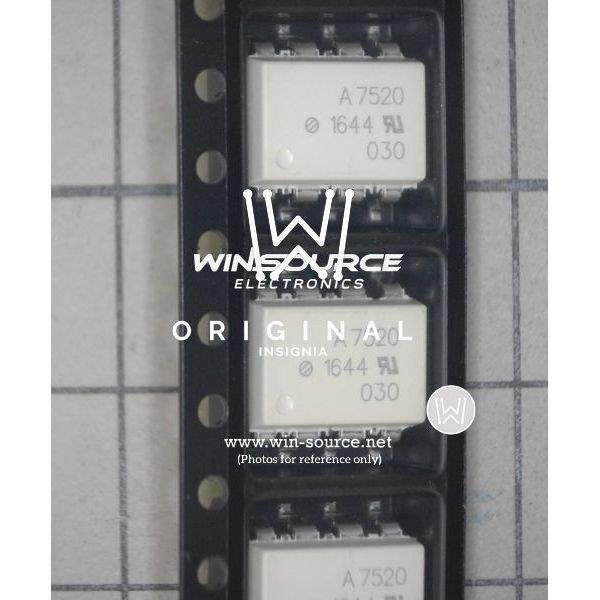

HCPL-7520-500E Real Image HCPL-7520-500E label picture HCPL-7520-500E real image
Same model may have multiple batches, images only for reference.
HCPL-7520-500E Real Image HCPL-7520-500E label picture HCPL-7520-500E real image
HCPL-7520-500E Real Image HCPL-7520-500E label picture HCPL-7520-500E real image
Same model may have multiple batches, images only for reference.

HCPL-7520-500E

Part No HCPL-7520-500E
Manufacturer Broadcom Limited
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP ISOLATION 100KHZ 8DIPGW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Amplifier Type Isolation
Number of Circuits 1
-3db Bandwidth 100kHz
Current - Input Bias 600nA
Voltage - Input Offset 600μV
Operating Supply Current 11.7mA
Channel Output Current 16mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-DIP Gull Wing
Win Source Part Number 1042757-HCPL-7520-500E
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian HCPL-7520-500E CAD Model

Description

This isolation amplifier type product has a -3db bandwidth of 100kHz and a current input bias of 600nA.

  • Type: isolation amplifier
  • -3db Bandwidth: 100kHz
  • Current Input Bias: 600nA
  • Voltage Input Offset: 600μV
  • Supply Voltage Range: 4.5V to 5.5V
  • Operating Supply Current: 11.7mA
  • Channel Output Current: 16mA
  • Status: active
  • Supply and Demand: balance
