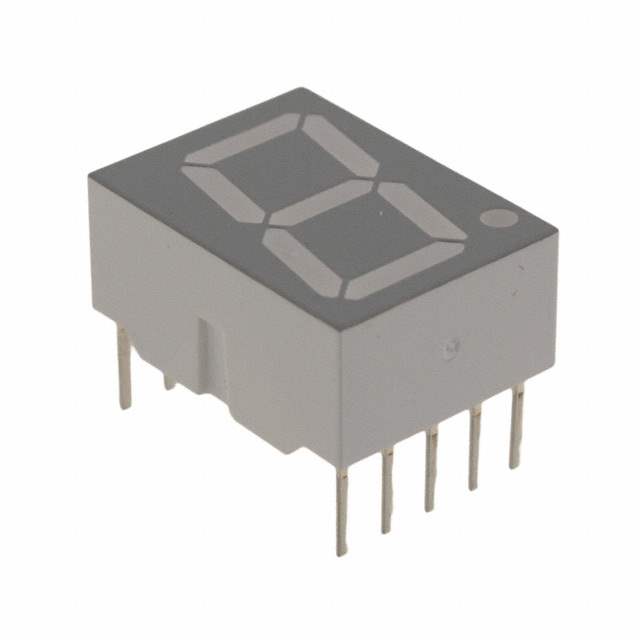

HDSP-H101 Real Image
Same model may have multiple batches, images only for reference.

HDSP-H101

Part No HDSP-H101
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description LED 7-SEG 14.2MM CA RED RHD
Datasheet
HDSP-H101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Number of Characters 1
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Forward Voltage 1.7V
Current - Test 5mA
Millicandela Rating 4.2mcd
Wavelength - Peak 645nm
Power Dissipation (Max) 37mW
Dimension 10-DIP (0.600", 15.24mm)
Win Source Part Number 016918-HDSP-H101
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSP-H101 CAD Model

Description

The Broadcom Limited HDSP-H101 is a red 7-segment display.

  • Packaging: Tube/Rail
  • Forward Voltage: 1.7V
  • Millicandela Rating: 4.2mcd
  • Peak Wavelength: 645nm
  • Power Dissipation: 37mW
  • Digit/Alpha Size: 0.56" (14.22mm)
  • Common Pin: Common Anode
  • Applications: digital clocks, timers, and counters
