Same model may have multiple batches, images only for reference.

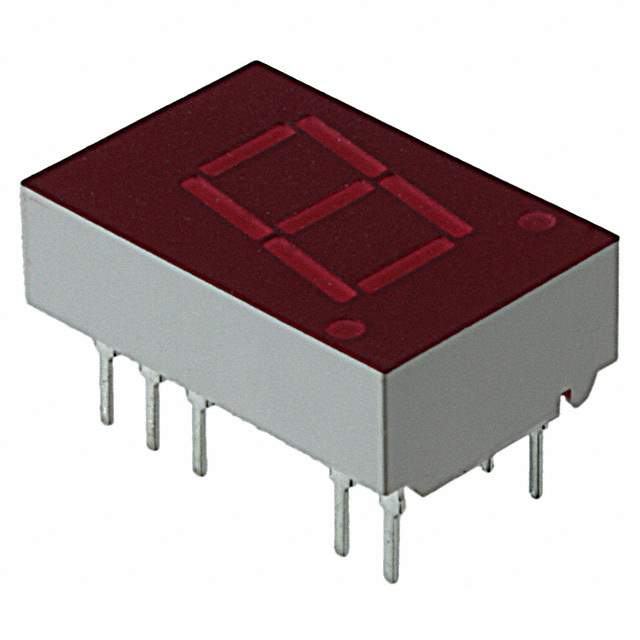

5082-7653-DE000 Real Image
Same model may have multiple batches, images only for reference.

5082-7653-DE000

Part No 5082-7653-DE000
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.43" SGL RED 14DIP  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2.1V 20mA 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) 14-DIP (0.300", 7.62mm), 10 Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Broadcom Limited
Package Tube
Number of Characters 1
Dimension 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm)
Digit/Alpha Size 0.43" (11.00mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Red
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Millicandela Rating 1.12mcd
Wavelength - Peak 635nm
Power Dissipation (Max) 105mW
Package / Case 14-DIP (0.300", 7.62mm), 10 Leads
Base Product Number 5082-7653
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.20.0040
Other Names 516-2608-5,5082-7653-DE000-ND,50827653DE000
Standard Package 25
Win Source Part Number 1016689-5082-7653-DE000
Ultra Librarian 3D Model Ultra Librarian 5082-7653-DE000 CAD Model

Description

The Win Source Part Number 1016689-5082-7653-DE000 is a red LED character and numeric display module manufactured by Broadcom Limited.

  • Millicandela Rating: 1.12mcd
  • Forward Voltage: 2.1V
  • Display Type: 7-segment
  • Character: 1
  • Digit/Alpha Size: 0.43" (11.00mm)
  • Common: cathode
  • Package: 14-DIP (0.300", 7.62mm), 10 Leads
  • Dimensions: 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm)
  • REACH: unaffected
  • ECCN: EAR99
  • HTSUS: 8531.20.0040
  • Other Names: 516-2608-5, 5082-7653-DE000-ND, and 50827653DE000
  • Base Product Number: 5082-7653
