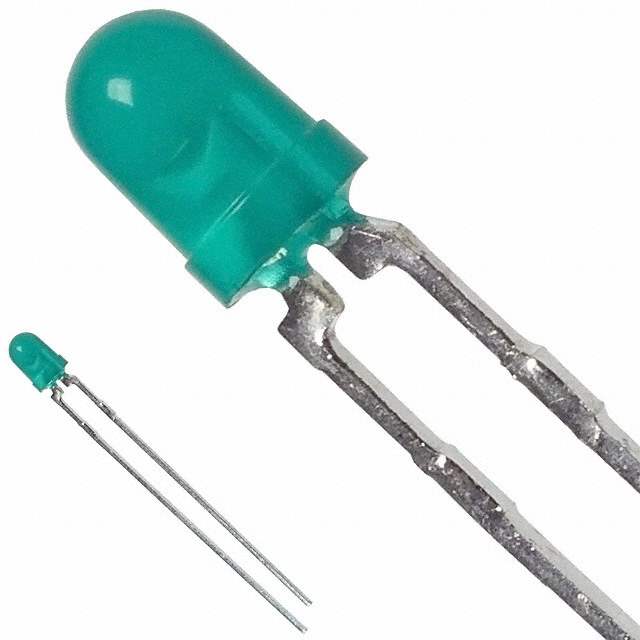

HLMP-1503 Real Image
Same model may have multiple batches, images only for reference.

HLMP-1503

Part No HLMP-1503
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GRN DIFF 3MM ROUND T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Status Active
Color Green
Lens Color Green
Lens Transparency Diffused
Millicandela Rating 1mcd
Lens Style/Size Round with Domed Top, 3mm (T-1), 2.93mm
Forward Voltage 2.1V
Current - Test 10mA
Viewing Angle 60°
Mounting Through Hole
Wavelength - Dominant 569nm
Wavelength - Peak 565nm
Case / Package T-1
Height (Max) 6.35mm
Win Source Part Number 274760-HLMP-1503
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in LED Lighting, Lighting, Portable Devices, Industrial
Family Name HLMP-1503
Introduction Date November 24, 2004
ECCN EAR99
Country of Origin China, Malaysia, Thailand
Halogen Free Compliant
Estimated EOL Date 2023
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian HLMP-1503 CAD Model

Description

The HLMP-1503 is an optoelectronic component manufactured by Broadcom Limited. This LED has a green color and is packaged in bulk.

  • Mounting: Through-Hole
  • Viewing Angle: 60°
  • Forward Voltage: 2.1V
  • Millicandela Rating: 1mcd
  • Wavelength Dominant: 569nm
  • Peak Wavelength: 565nm
  • Height: 6.35mm
  • Case: T-1
