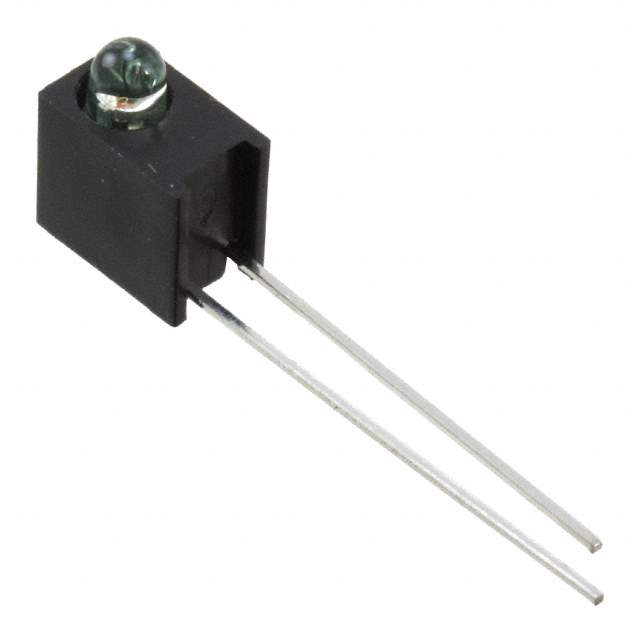

HLMP-1540-H00A1 Real Image
Same model may have multiple batches, images only for reference.

HLMP-1540-H00A1

Part No HLMP-1540-H00A1
Manufacturer Broadcom Limited
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM GAP GREEN RA HOUSING / LED Circuit Board Indicator LED Circuit Board Indicator Single Green Clear 2.2V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Broadcom Limited
Series HLMP-1540
Package Bulk
Color Green
Wavelength - Peak 565nm
Configuration Single
Current 20mA
Millicandela Rating 45mcd
Viewing Angle 45°
Lens Type Clear
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2.2V
Mounting Type Through Hole, Right Angle
Base Product Number HLMP-1540
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names HLMP-1540-H00A1-ND,516-3045
Standard Package 2,000
Win Source Part Number 1178094-HLMP-1540-H00A1
Ultra Librarian 3D Model Ultra Librarian HLMP-1540-H00A1 CAD Model

Description

The Broadcom Limited HLMP-1540-H00A1 is an optoelectronics product that belongs to the LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs category.

  • Product Name: HLMP-1540-H00A1
  • Manufacturer: Broadcom Limited
  • Category: Optoelectronics (LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs)
  • Color: Green
  • Voltage Rating: 2.2V
  • Viewing Angle: 45°
  • Millicandela Rating: 45mcd
  • Wavelength-Peak: 565nm
  • Current: 20mA
