Same model may have multiple batches, images only for reference.

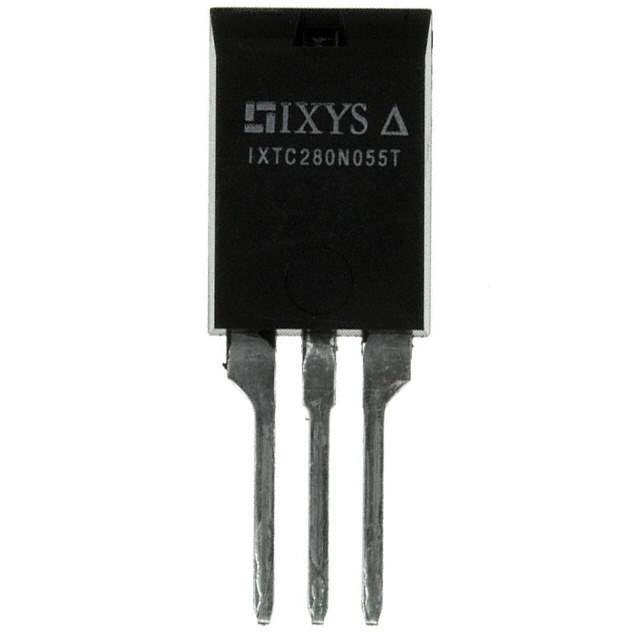

IXTC280N055T Real Image
Same model may have multiple batches, images only for reference.

IXTC280N055T

Part No IXTC280N055T
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 55V 145A ISOPLUS220 / N-Channel 55 V 145A (Tc) 160W (Tc) Through Hole ISOPLUS220™
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr IXYS
Series TrenchMV™
Package Tube
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 55 V
Current - Continuous Drain (Id) @ 25°C 145A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 3.6mOhm @ 50A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 200 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 9800 pF @ 25 V
Power Dissipation (Max) 160W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package ISOPLUS220™
Package / Case ISOPLUS220™
Base Product Number IXTC280
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1346850-IXTC280N055T
Ultra Librarian 3D Model Ultra Librarian IXTC280N055T CAD Model

Description

The IXTC280N055T is a N-channel MOSFET transistor from IXYS.

  • Drain to Source Voltage (Vdss): 55 V
  • Power Dissipation: 160W (Tc)
  • Mounting Type: Through hole
  • Package/Case: ISOPLUS220™
  • Input Capacitance (Ciss): 9800 pF @ 25 V
  • Rds On (Max): 3.6mOhm @ 50A, 10V
