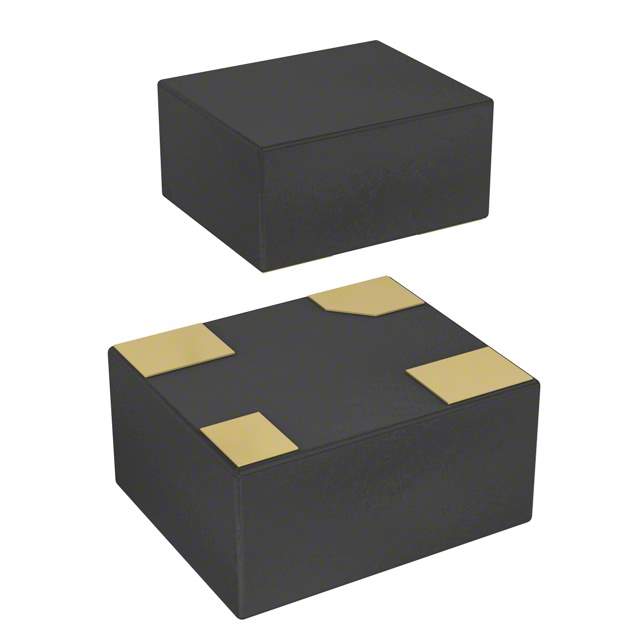

HMPS-2822-BLK Real Image
Same model may have multiple batches, images only for reference.

HMPS-2822-BLK

Part No HMPS-2822-BLK
Manufacturer Broadcom Limited
Catalog RF Diodes
Description DIODE SCHOTTKY RF 15V 1A MINIPAK
Datasheet
HMPS-2822-BLK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Broadcom Limited
Packaging Bulk
Status Active
Diode Type Schottky - 2 Independent
Voltage - Peak Reverse (Max) 15V
Current - Max 1A
Capacitance @ Vr, F 1pF @ 0V, 1MHz
Resistance @ If, F 12 Ohm @ 5mA, 1MHz
Temperature Range - Operating 150°C (TJ)
Case / Package MiniPak 1412
Win Source Part Number 1043889-HMPS-2822-BLK
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian HMPS-2822-BLK CAD Model

Description

The Broadcom Limited HMPS-2822-BLK is a Schottky diode with a peak reverse voltage of 15V and a maximum current of 1A.

  • Peak Reverse Voltage: 15V
  • Maximum Current: 1A
  • Win Source Part Number: 1043889-HMPS-2822-BLK
  • Packaging: Bulk
  • Case/Package: MiniPak 1412
