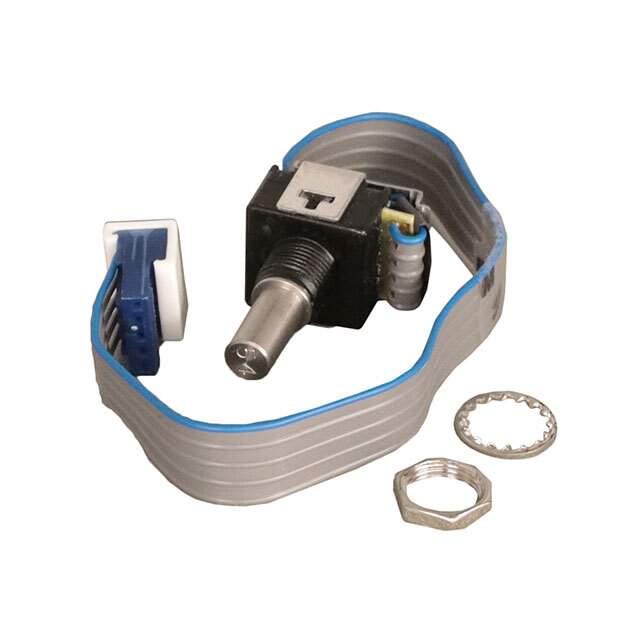

HRPG-AD32#54C Real Image
Same model may have multiple batches, images only for reference.

HRPG-AD32#54C

Part No HRPG-AD32#54C
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 32PPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 32
Supply Voltage (V) 5V
Actuator Type 6mm Dia Round End
Detent Yes
Built in Switch No
Mounting Style Panel Mount
Orientation Vertical
Termination Style Cable with Connector
Rotational Life (Cycles Min) 1M
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 723858-HRPG-AD32#54C
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HRPG-AD32#54C CAD Model

Description

The Broadcom Limited HRPG-AD32#54C is an optical encoder that is used in sensors and transducers. It has a quadrature (incremental) output type and a rotational life of 1M cycles minimum.

  • Output Type: Quadrature (incremental)
  • Rotational Life: 1M cycles minimum
  • Encoder Type: Optical
  • Detent: Yes

The supply and demand status of this component is currently limited.
