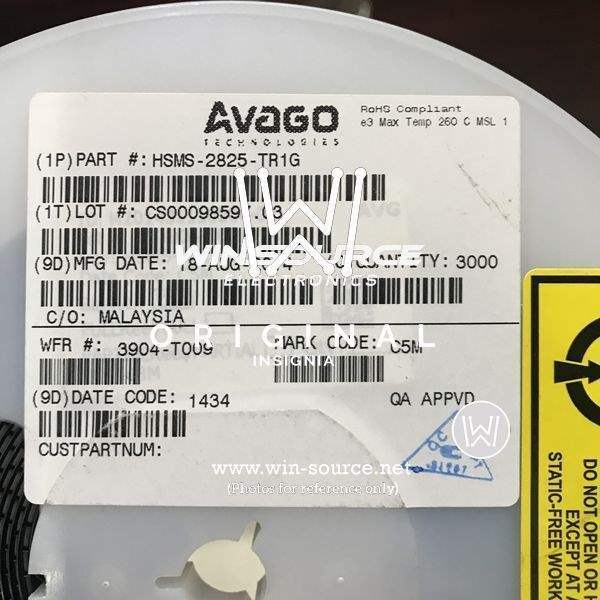

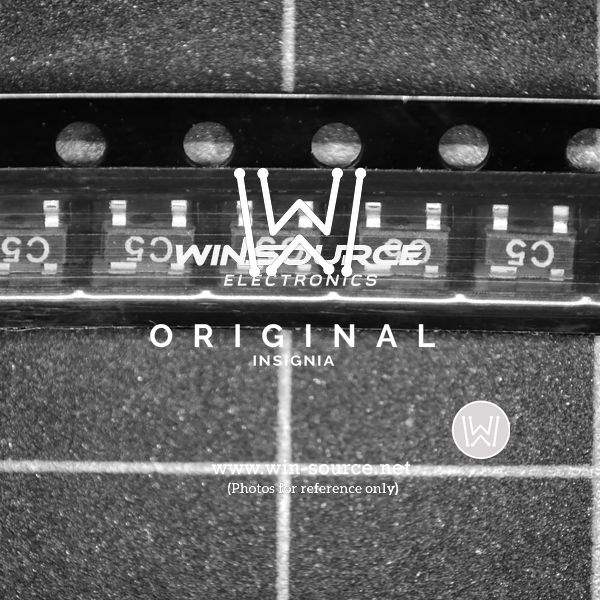

HSMS-2825-TR1G Broadcom Limited HSMS-2825-TR1G Real Image1 HSMS-2825-TR1G Real Image2 HSMS-2825-TR1G real image HSMS-2825-TR1G label picture
Same model may have multiple batches, images only for reference.
HSMS-2825-TR1G Broadcom Limited HSMS-2825-TR1G Real Image1 HSMS-2825-TR1G Real Image2 HSMS-2825-TR1G real image HSMS-2825-TR1G label picture
HSMS-2825-TR1G Broadcom Limited HSMS-2825-TR1G Real Image1 HSMS-2825-TR1G Real Image2 HSMS-2825-TR1G real image HSMS-2825-TR1G label picture
Same model may have multiple batches, images only for reference.

HSMS-2825-TR1G

Part No HSMS-2825-TR1G
Manufacturer Broadcom Limited
Catalog RF Diodes
Description DIODE SCHOTTKY RF 15V 1A SOT-143
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Diode Type Schottky - 2 Independent
Voltage - Peak Reverse (Max) 15V
Current - Max 1A
Capacitance @ Vr, F 1pF @ 0V, 1MHz
Resistance @ If, F 12 Ohm @ 5mA, 1MHz
Temperature Range - Operating 150°C (TJ)
Case / Package SOT-143-4
Win Source Part Number 017058-HSMS-2825-TR1G
Family Name HSMS-2825
Introduction Date April 01, 2004
ECCN EAR99
Country of Origin Malaysia, Thailand
Halogen Free Compliant
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian HSMS-2825-TR1G CAD Model

Description

The HSMS-2825-TR1G is a Schottky diode from Broadcom Limited.

  • Maximum Current: 1A
  • Peak Reverse Voltage: 15V
  • Diode Type: 2 independent Schottky diodes
  • Capacitance: 1pF @ 0V, 1MHz
  • Resistance: 12 Ohm @ 5mA, 1MHz
  • Package: SOT-143-4
  • Halogen-Free Compliant: Yes
  • Quantity per Package: 3k pcs
