Same model may have multiple batches, images only for reference.

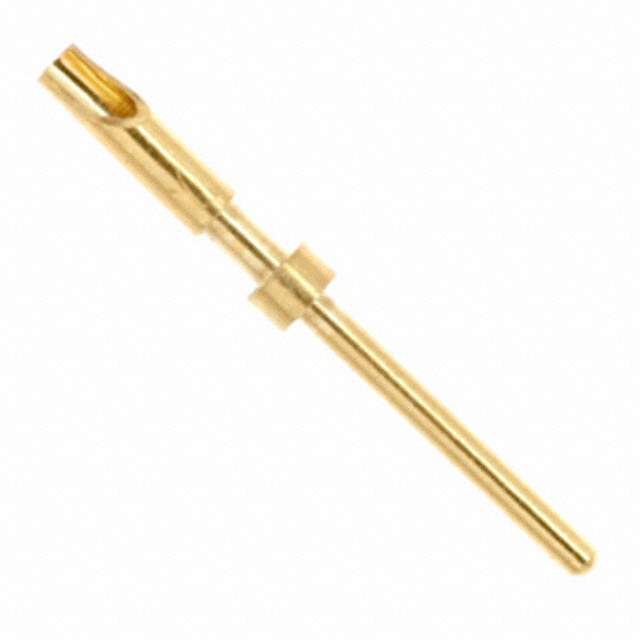

SA3180/1 Real Image
Same model may have multiple batches, images only for reference.

SA3180/1

Part No SA3180/1
Manufacturer Bulgin
Catalog Circular Connectors
Description CONTACT PIN 24-28AWG 1=10PC / Pin Contact 24-28 AWG Size 2.5mm Solder Cup Gold
Datasheet
SA3180/1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Contacts
Mfr Bulgin
Series Buccaneer®
Package Bulk
Type Power
Contact Type Pin
Contact Size 2.5mm
Wire Gauge or Range - AWG 24-28 AWG
Contact Termination Solder Cup
Contact Material Copper Alloy
Contact Finish Gold
Termination Finish Copper Alloy
Base Product Number SA3180
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 2266-SA3180/1,708-1096,SA31801
Standard Package 100
Win Source Part Number 1142630-SA3180/1
Ultra Librarian 3D Model Ultra Librarian SA3180/1 CAD Model

Description

The Bulgin Buccaneer connector is a power type connector with a pin contact type from Bulgin.

  • Connector Type: Power
  • Contact Type: Pin
  • Contact Finish: Gold
  • Contact Termination: Solder Cup
  • Contact Material: Copper Alloy
  • Wire Gauge/Range: 24-28 AWG
  • Package: Bulk
  • Standard Package: 100 Pieces
  • Win Source Part Number: 1142630-SA3180/1
