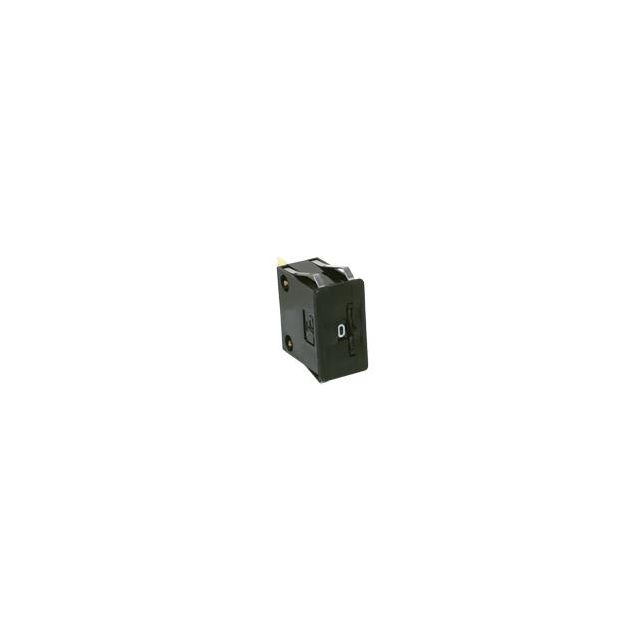

302109N03 Real Image
Same model may have multiple batches, images only for reference.

302109N03

Part No 302109N03
Manufacturer C&K Components
Catalog Thumbwheel Switches
Description SWITCH THUMB BCD 0.1A 120V/28V / Thumbwheel Switch BCD 0.1A @ 120VAC/28VDC Panel Mount, Snap-In
Datasheet
302109N03 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Thumbwheel Switches
Mfr C&K
Series 3
Package Bulk
Output Code BCD
Read Out 0 ~ 9
Number of Sections 1
Actuator Type Thumbwheel
Contact Rating @ Voltage 0.1A @ 120VAC/28VDC
Contact Material Copper Alloy
Mounting Type Panel Mount, Snap-In
Termination Style PC Pin
End Caps Sold Separately
Section Width 0.315" (8.00mm)
Features Dust Lens, Sealed Contacts
Temperature Range - Operating -40°C ~ 65°C
Depth Behind Flange 37.85mm
Housing Material Acrylonitrile Butadiene Styrene (ABS)
Color Black
Electrical Life 100,000 Cycles
Base Product Number 302109
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 2266-302109N03,*302109N03
Standard Package 1
Win Source Part Number 1118875-302109N03
Ultra Librarian 3D Model Ultra Librarian 302109N03 CAD Model

Description

The 1118875-302109N03 is a thumbwheel switch from C&K's 3 series with a readout of 0~9.

  • Readout: 0~9
  • Features: Dust Lens and Sealed Contacts
  • Panel Cutout Dimension: -
  • Actuator Type: Thumbwheel
  • Electrical Life: 100,000 cycles
  • Contact Rating: 0.1A @ 120VAC/28VDC
  • Mounting: Panel Mount, Snap-In
  • Temperature Range: -40°C to 65°C
  • Output Code: BCD
  • Sections: One
  • Section Width: 0.315 inches (8.00mm)
  • Housing Material: Acrylonitrile Butadiene Styrene (ABS)
  • Contact Material: Copper Alloy
  • End Caps: Sold Separately
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS Code: 8536.50.9065
