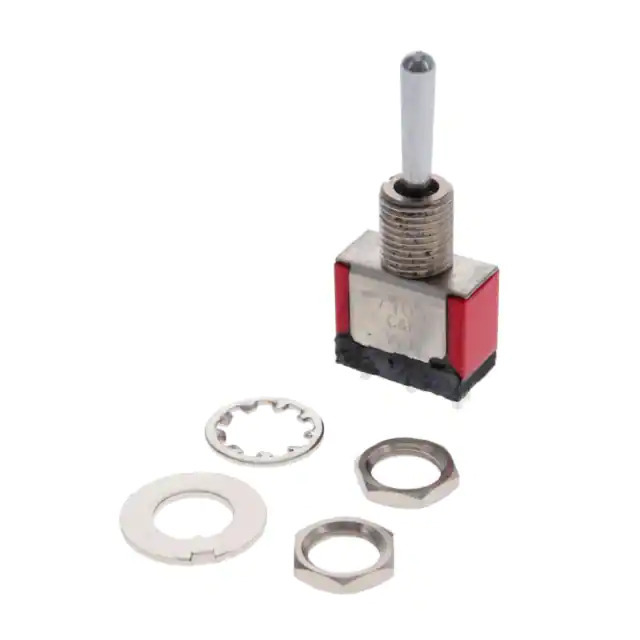

7103K2ABE C&K Components
Same model may have multiple batches, images only for reference.

7103K2ABE

Part No 7103K2ABE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 20V
Datasheet
7103K2ABE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr C&K
Series 7000
Package Bulk
Product Status Active
Mounting Type Panel Mount, Right Angle
Circuit SPDT
Switch Function On-Off-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Locking Lever
Actuator Length 17.88mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Panel Cutout Dimensions Circular - 6.35mm Dia
Bushing Thread 1/4-40
Ingress Protection -
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 40,000 Cycles
Base Product Number 7103K2
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375963-7103K2ABE
Ultra Librarian 3D Model Ultra Librarian 7103K2ABE CAD Model

Description

The 1375963-7103K2ABE is a panel mount toggle switch from the 7000 series manufactured by C&K.

  • Circuit Configuration: SPDT
  • Switch Function: on-off-on
  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating: 20V AC and 20V DC
  • Actuator Type: Locking lever
  • Terminals: Epoxy sealed
