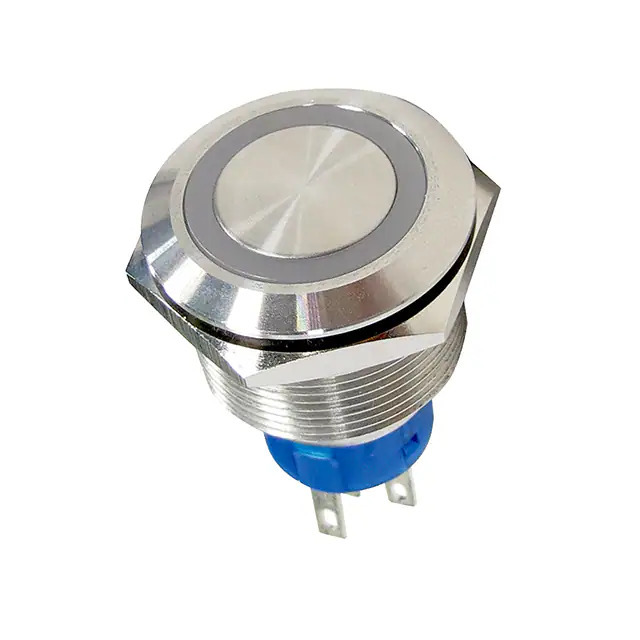

ATP22-SL3-724-B0SE-03Q C&K Components
Same model may have multiple batches, images only for reference.

ATP22-SL3-724-B0SE-03Q

Part No ATP22-SL3-724-B0SE-03Q
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH ANTI-VANDAL 22MM SEALED S
Datasheet
ATP22-SL3-724-B0SE-03Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series ATP22
Package Bulk
Product Status Active
Mounting Type Panel Mount, Front
Type Anti-Vandal, Illuminated
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 28 V
Actuator Type Round, Button, Flush
Actuator Marking No Marking
Color - Actuator/Cap Silver
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 24 VDC
Termination Style Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Panel Cutout Dimensions Circular - 22.20mm Dia
Temperature Range - Operating -20°C ~ 55°C
Mechanical Life 500,000 Cycles
Electrical Life 50,000 Cycles
Base Product Number ATP22
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376064-ATP22-SL3-724-B0SE-03Q
Ultra Librarian 3D Model Ultra Librarian ATP22-SL3-724-B0SE-03Q CAD Model

Description

The ATP22-SL3-724-B0SE-03Q is an anti-vandal pushbutton switch from C&K's ATP22 series.

  • Mounting Type: Panel Mount, Front Installation
  • Packaging: Bulk
  • Temperature Range: -20°C to 55°C
  • Ingress Protection: IP67 (Dust Tight & Waterproof)
  • Circuit: SPDT (Single-Pole, Double-Throw)
  • Switch Function: On-On
  • Actuator: Round, Button-Shaped, Flush, Silver
  • Illumination: LED, Blue
  • Illumination Voltage: 24VDC
  • Mechanical Life: 500,000 Cycles
  • Electrical Life: 50,000 Cycles
