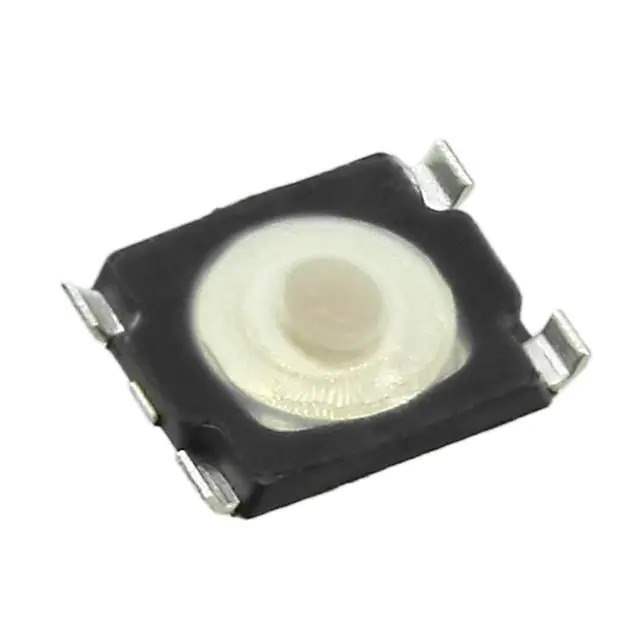

KMT021 NGJ LHS Real Image
Same model may have multiple batches, images only for reference.

KMT021 NGJ LHS

Part No KMT021 NGJ LHS
Manufacturer C&K Components
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 32V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
KMT021 NGJ LHS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr C&K Components
Series KMT0
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 32VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 0.65mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 3.00mm x 2.60mm
Illumination Non-Illuminated
Operating Force 160gf
Ingress Protection IP68 - Dust Tight, Waterproof
Features Tactile Feedback
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.15mm
Mechanical Life 300,000 Cycles
Base Product Number KMT021
Standard Package 5,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 852598-KMT021 NGJ LHS
Ultra Librarian 3D Model Ultra Librarian KMT021 NGJ LHS CAD Model

Description

The KMT0 series from C&K is a surface mount tactile switch.

  • Mounting Type: Surface Mount
  • Switch Type: Tactile
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Switch Travel: 0.15mm
  • Contact Rating: 0.05A @ 32VDC
  • Actuator Orientation: Top Actuated
  • Outline: 3.00mm x 2.60mm
  • Illumination: Non-Illuminated
  • Operating Force: 160gf
  • Mechanical Life: 300,000 cycles
  • Operating Temperature: -40°C to 85°C
  • Protection: Dust Tight and Waterproof (IP68)
  • Status: Active Product
