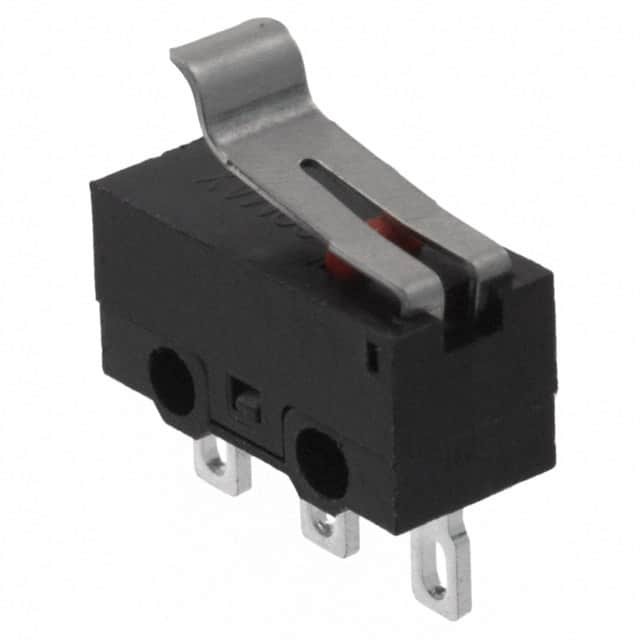

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr C&K
Series MS, COMAX
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Operating Force 25gf
Release Force 5.000gf
Differential Travel 0.020" (0.5mm)
Overtravel 0.020" (0.5mm)
Operating Position 0.335" (8.5mm)
Electrical Life 50,000 Cycles
Mechanical Life 500,000 Cycles
Base Product Number MS-118405
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1316141-MS-118405-H
Ultra Librarian 3D Model Ultra Librarian MS-118405-H CAD Model

Description

The C&K electronic component is a limit switch designed for use in electronic devices that require a circuit with a SPDT switch function.

  • Series: MS, COMAX
  • Voltage Rating: 30 V DC
  • Operating Force: 25 gf
  • Mechanical Life: 500,000 cycles
  • Mounting: Chassis mount
