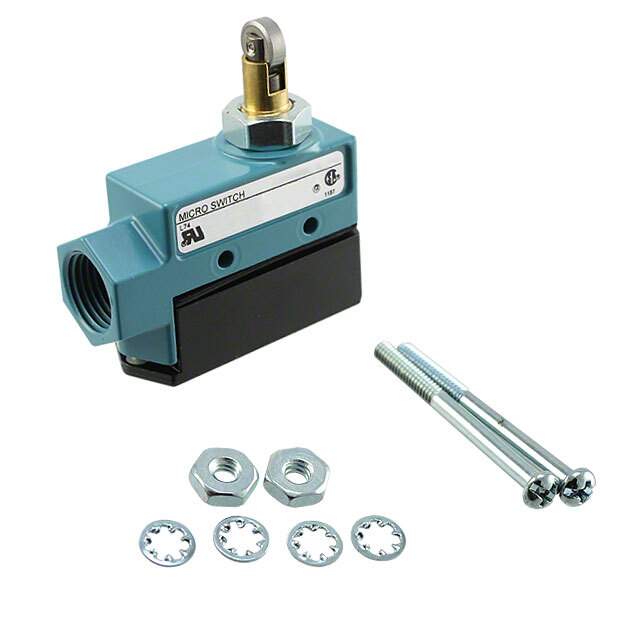

BZE6-2RQ814

Part No BZE6-2RQ814
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Chassis Mount
Datasheet
BZE6-2RQ814 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series E6
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC), 500mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Cross Roller Plunger
Mounting Type Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP40
Operating Force 709 ~ 1134gf
Release Force 283gf
Pretravel 0.015" (0.4mm)
Differential Travel 0.002" (0.05mm)
Overtravel 0.141" (3.6mm)
Temperature Range - Operating -32°C ~ 71°C
Operating Position 1.953" (49.6mm)
Base Product Number BZE6
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names BZE6-2RQ814-ND,480-6971
Standard Package 1
Win Source Part Number 1086587-BZE6-2RQ814
Ultra Librarian 3D Model Ultra Librarian BZE6-2RQ814 CAD Model

Description

The Honeywell E6 series limit switch with screw terminal termination style is an SPDT circuit switch with an On-Mom switch function.

  • Operating Force: 709 ~ 1134gf
  • Release Force: 283gf
  • Pretravel: 0.015" (0.4mm)
  • Differential Travel: 0.002" (0.05mm)
  • Overtravel: 0.141" (3.6mm)
  • Operating Position: 1.953" (49.6mm)
  • Temperature Range: -32°C ~ 71°C
  • Ingress Protection Rating: IP40
  • Voltage Rating: 125 V AC
  • Voltage Rating: 125 V DC
  • Current Rating: 5A (AC)
  • Current Rating: 500mA (DC)
