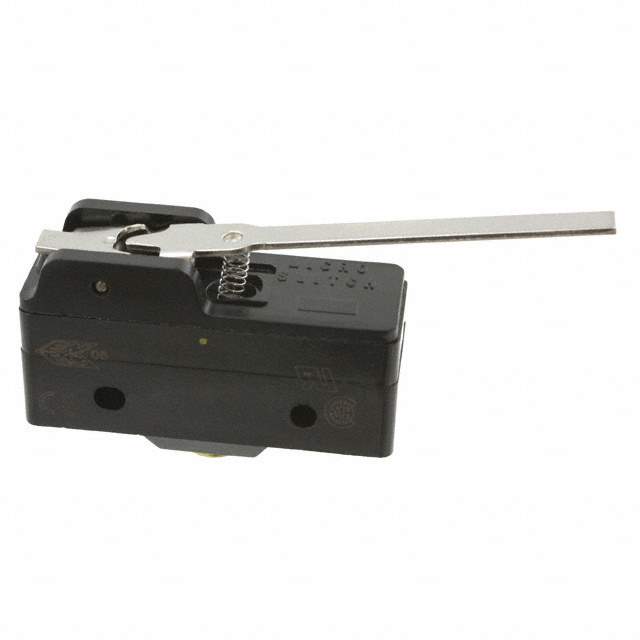

BZ-2RW8072-A2 Real Image
Same model may have multiple batches, images only for reference.

BZ-2RW8072-A2

Part No BZ-2RW8072-A2
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 1A 125V  /  Switch SPDT Chassis Mount
Datasheet
BZ-2RW8072-A2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series BZ
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 1A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Screw Terminal
Operating Force 71gf
Release Force 14gf
Differential Travel 0.050" (1.3mm)
Overtravel 0.219" (5.6mm)
Temperature Range - Operating -55°C ~ 85°C
Operating Position 0.750" (19.1mm)
Mechanical Life 20,000,000 Cycles
Base Product Number BZ-2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names BZ2RW8072A2,480-4643,BZ-2RW8072-A2-ND
Standard Package 50
Win Source Part Number 1016990-BZ-2RW8072-A2
Ultra Librarian 3D Model Ultra Librarian BZ-2RW8072-A2 CAD Model

Description

The BZ-2RW8072-A2 electronic component is a limit switch used in switch applications.

  • Series: BZ
  • Circuit: SPDT
  • Voltage Rating: 125 V
  • Current Rating: 1A (AC)
  • Operating Force: 71gf
  • Mechanical Life: 20,000,000 cycles
  • Mounting: Chassis mount
  • Temperature Range: -55°C to 85°C
