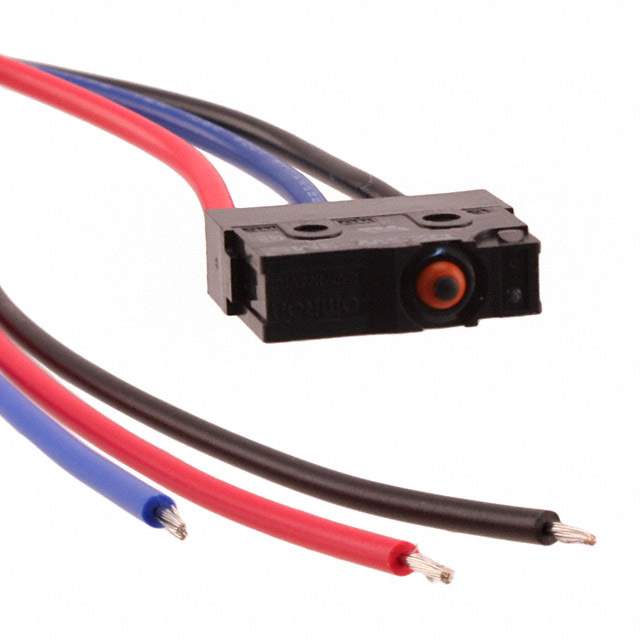

D2SW-3M Real Image
Same model may have multiple batches, images only for reference.

D2SW-3M

Part No D2SW-3M
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V  /  Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2SW
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 180gf
Release Force 30gf
Pretravel 0.024" (0.6mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 200,000 Cycles
Mechanical Life 5,000,000 Cycles
Base Product Number D2S
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2SW3M
Standard Package 200
Win Source Part Number 1177982-D2SW-3M
Ultra Librarian 3D Model Ultra Librarian D2SW-3M CAD Model

Description

The D2SW-3M is a limit switch from Omron Electronics Inc-EMC Div that comes in a bulk package with wire leads termination style.

  • Voltage Rating (AC): 125 V AC
  • Voltage Rating (DC): 30 V DC
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 5,000,000 cycles
  • Current Rating (AC/DC): 3A (AC/DC)
  • Operating Force: 180gf
  • Category: Switches>Limit Switches
  • Alternative Part: D2SW3M
