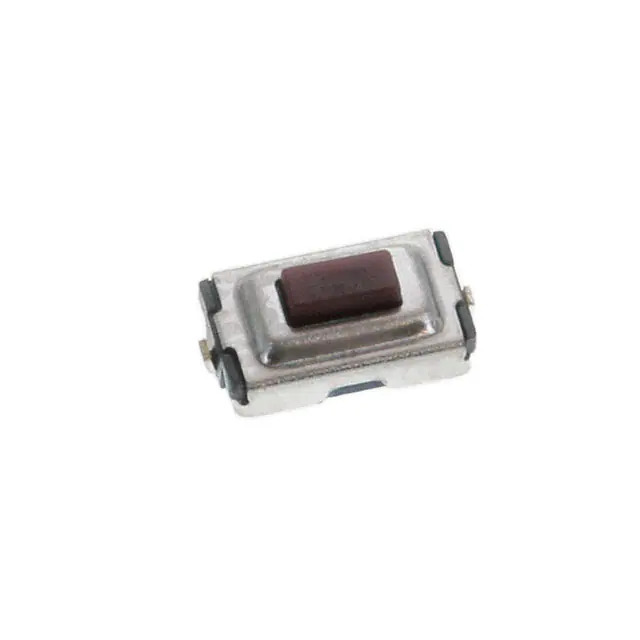

PTS636 SK25J SMTR LFS C&K Components
Same model may have multiple batches, images only for reference.

PTS636 SK25J SMTR LFS

Part No PTS636 SK25J SMTR LFS
Manufacturer C&K Components
Catalog Tactile Switches
Description TACT 6.0 X 3.5, 2.5 MM H, 250GF, / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
PTS636 SK25J SMTR LFS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr C&K
Series PTS636
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 2.50mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.00mm x 3.50mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 250gf
Ingress Protection IP40
Features -
Temperature Range - Operating -40°C ~ 90°C
Actuator Material -
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number PTS636
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376514-PTS636 SK25J SMTR LFS
Ultra Librarian 3D Model Ultra Librarian PTS636 SK25J SMTR LFS CAD Model

Description

The PTS636 SK25J SMTR LFS is a tactile switch from C&K.

  • Operating Temperature: -40°C to 90°C
  • Ingress Protection: IP40
  • Circuit Configuration: Single-Pole, Single-Throw Normally Open (SPST-NO)
  • Contact Rating: 0.05A @ 12VDC
  • Mechanical Life: 100,000 cycles
  • Operating Force: 250gf
