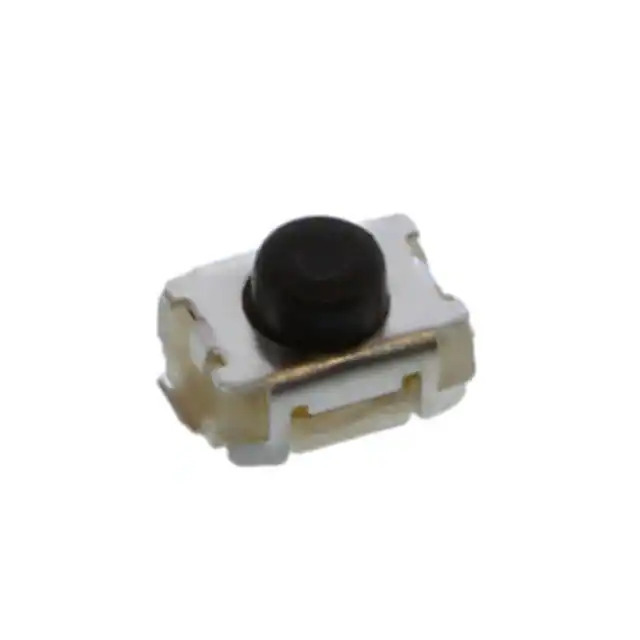

PTS820J25MSMTRLFS

Name: PTS820J25MSMTRLFS
Brand: C&K Components
SKU: 1376500
Availability: InStock
Rating: 4.84 (111 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTS820J25MSMTRLFS
Manufacturer	C&K Components
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet	PTS820J25MSMTRLFS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	C&K
Series	PTS820
Package	Tape & Reel
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting Type	Surface Mount
Actuator Height off PCB, Vertical	2.50mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	J Lead
Outline	3.90mm x 2.90mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	160gf
Ingress Protection	-
Features	-
Temperature Range - Operating	-40°C ~ 85°C
Actuator Material	-
Switch Travel	0.20mm
Mechanical Life	200,000 Cycles
Base Product Number	PTS820
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1376500-PTS820J25MSMTRLFS
Ultra Librarian 3D Model	Ultra Librarian PTS820J25MSMTRLFS CAD Model

Alternative Products

Description

The PTS820J25MSMTRLFS is a surface mount tactile switch from C&K's PTS820 series. It is a single-pole, single-throw normally open switch with an off-momentary function.

Size: 3.90mm x 2.90mm
Mounting: Surface Mount
Mechanical Life: 200,000 cycles
Contact Rating: 0.05A @ 12VDC
Actuator Height: 2.50mm
Operating Temperature: -40°C to 85°C
Illumination: Non-Illuminated
Packaging: Tape and Reel
Production Status: Active
