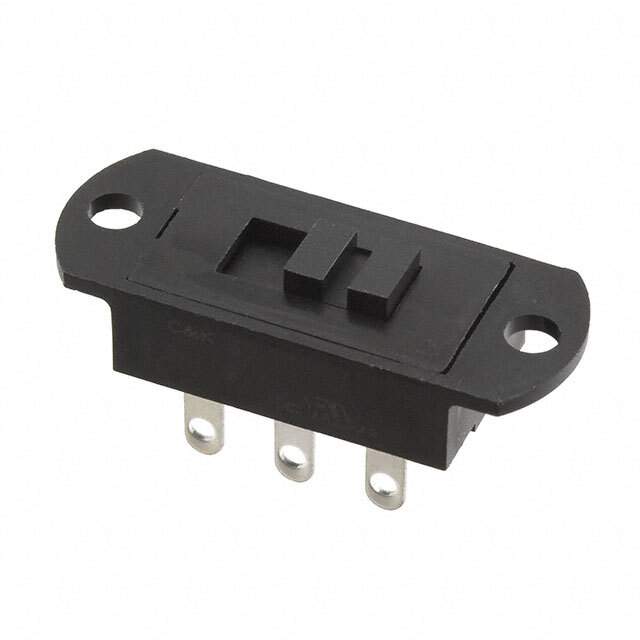

Same model may have multiple batches, images only for reference.

S202131SS03Q

Name: S202131SS03Q
Brand: C&K Components
SKU: 1233185
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	S202131SS03Q
Manufacturer	C&K Components
Catalog	Slide Switches
Description	SWITCH SLIDE DPDT 6A 125V / Slide Switch DPDT Panel Mount
Datasheet	S202131SS03Q Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Slide Switches
Mfr	C&K
Series	S
Package	Bulk
Circuit	DPDT
Contact Timing	Not Specified
Switch Function	On-On (Line Voltage Selector)
Current Rating (Amps)	6A (AC), 1A (DC)
Voltage Rating - AC	125 V
Voltage Rating - DC	125 V
Actuator Type	Screwdriver Slot
Actuator Length	1.27mm
Contact Material	Copper
Contact Finish	Silver
Mounting Type	Panel Mount
Termination Style	Solder Lug
Features	No Marking
Temperature Range - Operating	-30°C ~ 65°C
Actuator Material	Polyamide (PA66), Nylon 6/6
Switch Travel	4.57mm
Electrical Life	10,000 Cycles
Base Product Number	S202131
Other Names	-S202131SS03Q,*S202131SS03Q,CKN11024,S202131SS03Q
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9050
Win Source Part Number	1233185-S202131SS03Q
Ultra Librarian 3D Model	Ultra Librarian S202131SS03Q CAD Model

Alternative Products

Description

The C&K S202131SS03Q is a DPDT slide switch that has a voltage rating of 125VAC and 125VDC.

Current Rating: 6A (AC) and 1A (DC)
Electrical Life: 10,000 cycles
Contact Material: Copper
Contact Finish: Silver
Actuator Type: Screwdriver Slot
Actuator Length: 1.27mm
Switch Travel: 4.57mm
Package: Bulk
Mounting Type: Panel Mount
AEC-Q200: Rated
Marking Features: No Marking
Temperature Range: -30°C ~ 65°C
