Same model may have multiple batches, images only for reference.

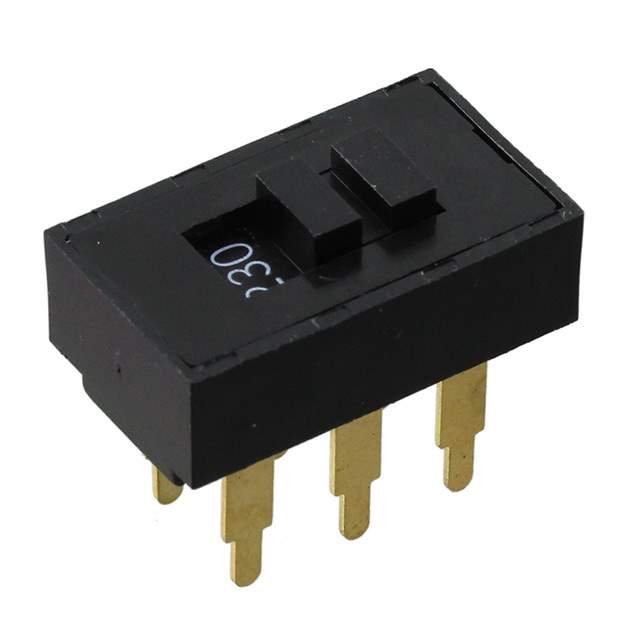

S602121MS04G Real Image
Same model may have multiple batches, images only for reference.

S602121MS04G

Part No S602121MS04G
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 12A 125V  /  Slide Switch DPDT Through Hole
Datasheet
S602121MS04G Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series S
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On (Line Voltage Selector)
Current Rating (Amps) 12A (AC), 1A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Screwdriver Slot
Actuator Length 1.27mm
Contact Material Copper
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Features 115V-230V Marking
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.57mm
Electrical Life 10,000 Cycles
Base Product Number S602121
Other Names 2266-S602121MS04G,Q4023465,CKN11226,*S602121MS04G,S602121MS04G
Standard Package 36
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233187-S602121MS04G
Ultra Librarian 3D Model Ultra Librarian S602121MS04G CAD Model

Description

The S602121MS04G slide switch from C&K is a DPDT On-On (Line Voltage Selector) switch that is perfect for use in electronic applications.

  • Actuator Type: Screwdriver Slot
  • Termination Style: PC Pin
  • Voltage Rating: 125 V AC and 125 V DC
  • Current Rating: 12A (AC) and 1A (DC)
  • Mechanical Life: Unspecified
  • Electrical Life: 10,000 cycles
  • Operating Temperature Range: -30°C ~ 65°C
  • Package: Bulk
  • Standard Package: 36
