Same model may have multiple batches, images only for reference.

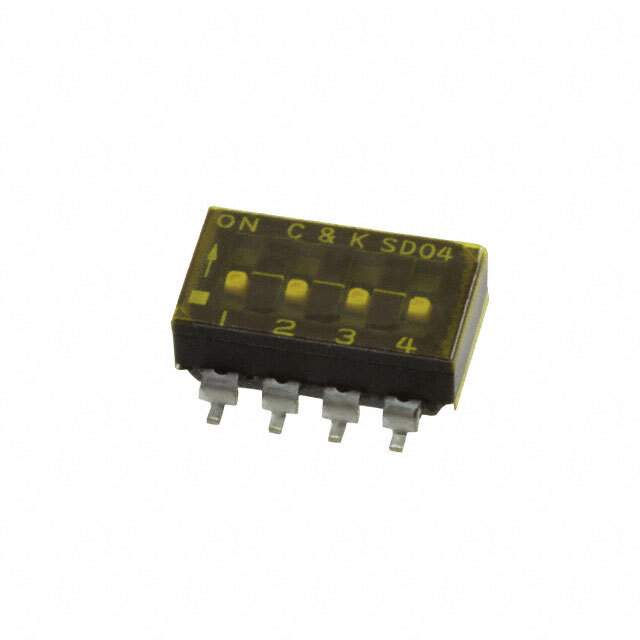

SD04H0SBR Real Image
Same model may have multiple batches, images only for reference.

SD04H0SBR

Part No SD04H0SBR
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 25V
Datasheet
SD04H0SBR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 9 Weeks
Features Dip Switch SPST Position Surface Mount Slide (Standard) Actuator 100mA 25VDC
Manufacturer C&K Components
Series SD
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Family Name SD04H0
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number SD04H0SBR-ND, CKN10662CT, 2266-SD04H0SBR, CKN10662TR, *SD04H0SBR, CKN10662DKR
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 933190-SD04H0SBR
Ultra Librarian 3D Model Ultra Librarian SD04H0SBR CAD Model

Description

The SD04H0SBR is a Dip Switch SPST Position Surface Mount Slide (Standard) Actuator 100mA 25VDC electronic component manufactured by C&K Components.

  • Series: SD
  • Operating Temperature: -40°C to 85°C
  • Package: Reel - TR
  • Mounting: Surface Mount
  • Family Name: SD04H0
  • Categories: Switches
  • Supply and Demand Status: balanced
  • Quantity per package: 1000
  • MSL Level: 1 (Unlimited)
  • Production Lead Time: 9 weeks (estimated)
  • REACH Status: REACH unaffected
  • HTSUS: 8536.50.9065
  • Other part numbers: SD04H0SBR-ND, CKN10662CT, 2266-SD04H0SBR, CKN10662TR, *SD04H0SBR, and CKN10662DKR
