Same model may have multiple batches, images only for reference.

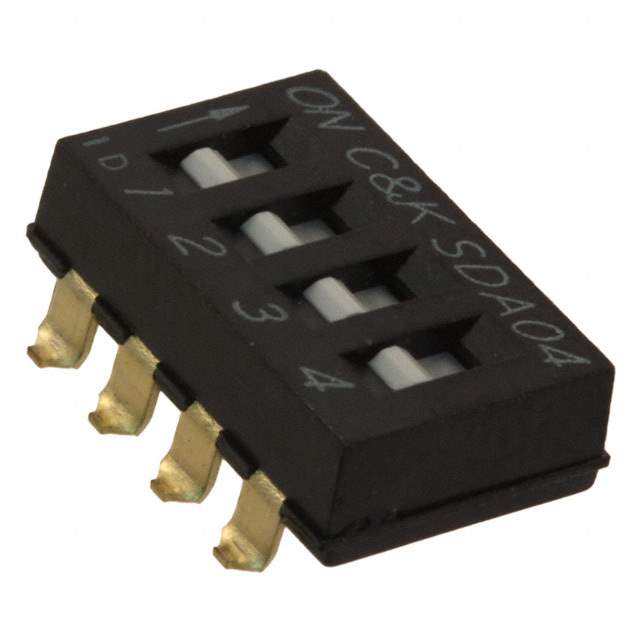

SDA04H0SBD Real Image
Same model may have multiple batches, images only for reference.

SDA04H0SBD

Part No SDA04H0SBD
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V  /  Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Datasheet
SDA04H0SBD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 4
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.175" (4.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.476" (12.09mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA04H
Other Names *SDA04H0SBD,CKN6066,2266-SDA04H0SBD
Standard Package 35
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233766-SDA04H0SBD
Ultra Librarian 3D Model Ultra Librarian SDA04H0SBD CAD Model

Description

The SDA04H0SBD is a DIP switch component manufactured by C&K.

  • Series: SDA series
  • Positions: Four
  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: Gull wing
  • Contact Material: Beryllium Copper
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Supply and Demand Status: Balanced
