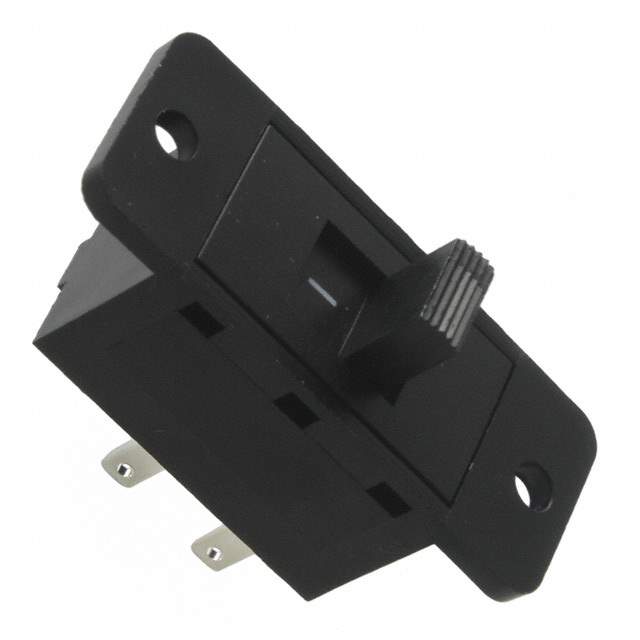

V70102SS05Q Real Image
Same model may have multiple batches, images only for reference.

V70102SS05Q

Part No V70102SS05Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SPST 10A 125V / Switch Slide ON OFF SPST Extended Top Slide 10A 250VAC 30VDC Quick Connect Panel Mount Bulk
Datasheet
V70102SS05Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K
Series V
Packaging Bulk
Circuit SPST
Contact Timing Not Specified
Switch Function On-Off
Current Rating 10A (AC), 4A (DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Standard
Actuator Length 7.36mm
Contact Material Copper
Contact Finish Silver
Mounting Panel Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Features O - Marking
Actuator Material Polyester, Glass Filled
Operating Temperature Range -30°C ~ 85°C
Electrical Life 10,000 Cycles
Win Source Part Number 798995-V70102SS05Q
Popularity Medium
Supply and Demand Status Limited
Family Name V
Introduction Date December 05, 1999
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian V70102SS05Q CAD Model

Description

The C&K V70102SS05Q is a panel mount SPST switch with a quick connect termination style of 0.110" (2.8mm).

  • Operating Temperature: -30°C to 85°C
  • Contact Finish: Silver
  • Contact Material: Copper
  • Special Features: O-marking
  • Switch Function: On-Off
  • Current Rating: 10A (AC), 4A (DC)
  • Actuator Material: Polyester and Glass-filled
  • Actuator Type: Standard
  • Voltage Rating: 125V (AC), 30V (DC)
  • Introduction Date: December 05, 1999
  • Estimated EOL Date: 2027
  • Mechanical Life: 10,000 cycles
