Products specifications

Category Connectors, Interconnects>Coaxial Connectors (RF) - Adapters
Mfr Cal Test Electronics
Package Bulk
Adapter Type Plug to Plug
Conversion Type Same Series
Adapter Series BNC to BNC
Center Gender Male to Male
Convert From (Adapter End) BNC Plug, Male Pin
Convert To (Adapter End) BNC Plug, Male Pin
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock, Bayonet Lock
Frequency - Max 4 GHz
Center Contact Plating Gold
Body Material Brass
Body Finish Nickel
Center Contact Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -20°C ~ 80°C
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 5
Win Source Part Number 1121773-CT2766
Ultra Librarian 3D Model Ultra Librarian CT2766 CAD Model

Description

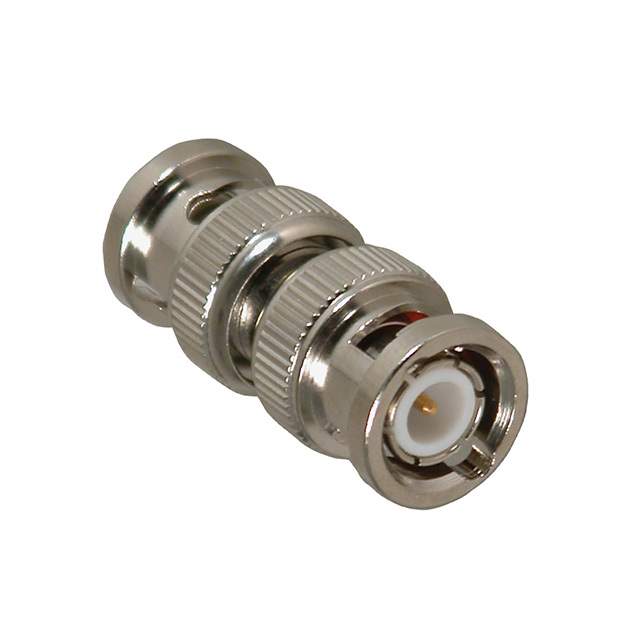

This brass-made BNC to BNC plug-to-plug adapter is designed for coaxial connectors.

  • Adapter End: Bayonet Lock
  • Center Gender: Male to Male
  • Frequency Max: 4 GHz
  • Impedance: 50 ohms
  • Temperature Range: -20°C to 80°C
  • Adapter Type: BNC Plug, Male Pin
  • Style: Straight
  • Body Finish: Nickel
  • Center Contact Material: Brass
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mounting Type: Free Hanging (In-Line)
