Same model may have multiple batches, images only for reference.

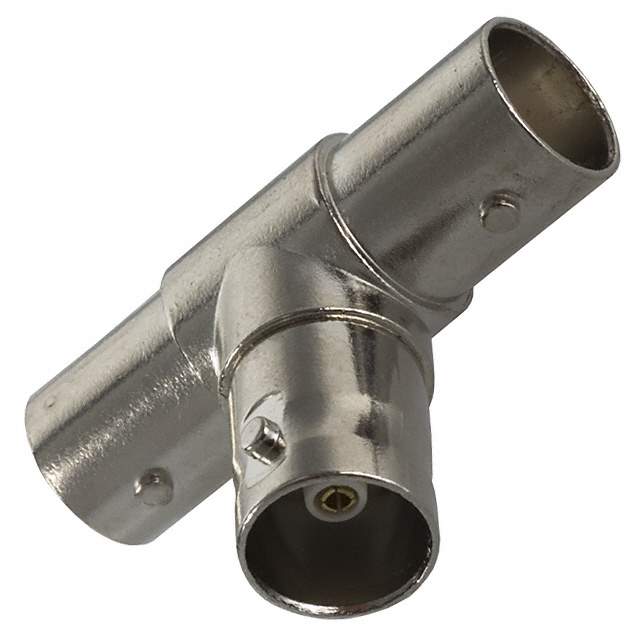

CP-AD-584 Real Image
Same model may have multiple batches, images only for reference.

CP-AD-584

Part No CP-AD-584
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF) - Adapters
Description CONN ADAPT JACK-JACK BNC 75 OHM
Datasheet
CP-AD-584 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Cinch Connectivity Solutions AIM-Cambridge
Packaging Bulk
Adapter Type Jack to Jack
Conversion Type Same Series
Adapter Series BNC to BNC, Dual
Center Gender Female to Female
Convert From (Adapter End) BNC Jack, Female Socket
Convert To (Adapter End) BNC Jack, Female Socket (2)
Impedance 75 Ohm
Style T-Shape
Mounting Free Hanging (In-Line)
Fastening Type Bayonet Lock, Bayonet Lock
Frequency - Max 2GHz
Center Contact Plating Gold
Body Material Zinc
Body Finish Nickel
Center Contact Material Brass
Dielectric Material Polymethylpentene (PMP)
Operating Temperature Range -55°C ~ 85°C
Win Source Part Number 767219-CP-AD-584
Popularity Medium
Supply and Demand Status Limited
Family Name CP
Introduction Date April 15, 2002
ECCN EAR99
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian CP-AD-584 CAD Model

Description

The Cinch Connectivity Solutions AIM-Cambridge 767219-CP-AD-584 is a medium popularity electronic component with limited supply and demand status.

  • Adapter Type: T-shape
  • Frequency Range: Up to 2GHz
  • Operating Temperature Range: -55°C to 85°C
  • Fastening Type: Bayonet Lock
