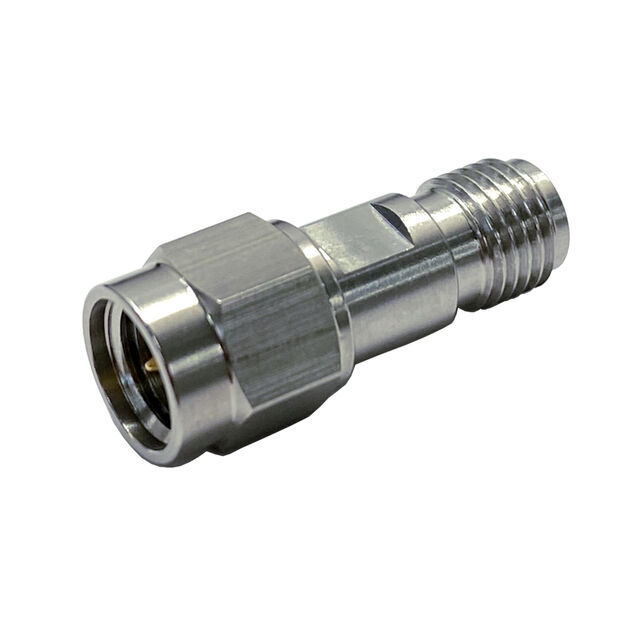

Same model may have multiple batches, images only for reference.

3.5P-SMAJ

Get a Quote

Part No	3.5P-SMAJ
Manufacturer	TYCLON
Catalog	Coaxial Connectors (RF) - Adapters
Description	Adapter Coaxial Connector 3.5mm Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
Datasheet	3.5P-SMAJ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Package	Retail Package
Product Status	Active
Adapter Type	Plug to Jack
Conversion Type	Between Series
Adapter Series	SMA to 3.5mm
Center Gender	Female to Male
Convert From (Adapter End)	3.5mm Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Impedance	50 Ohms
Style	Straight
Mounting Type	Free Hanging (In-Line)
Fastening Type	Threaded, Threaded
Frequency - Max	26.5GHz
Center Contact Plating	Gold
Ultra Librarian 3D Model	Ultra Librarian 3.5P-SMAJ CAD Model
