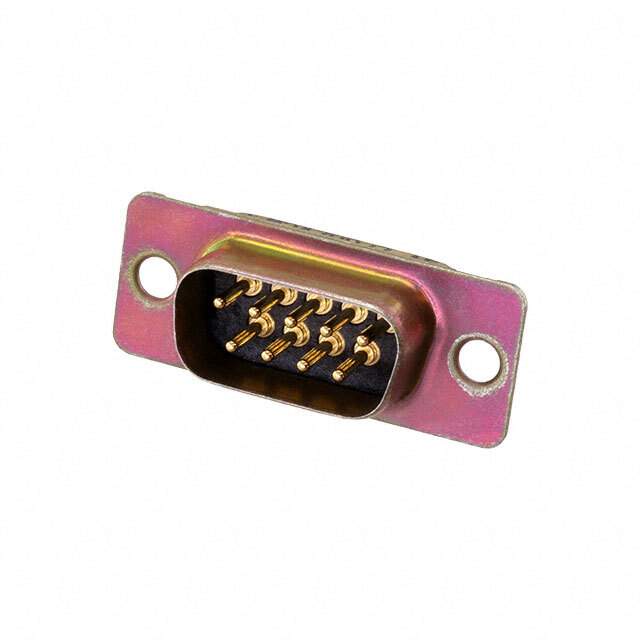

M24308/3-1F Real Image
Same model may have multiple batches, images only for reference.

M24308/3-1F

Part No M24308/3-1F
Manufacturer Cinch Connectivity Solutions
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB PLUG 9POS PNL MNT
Datasheet
M24308/3-1F Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Cinch Connectivity Solutions
Series Military, MIL-C-24308, M24308
Packaging Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Panel Mount
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Yellow Chromate Plated Cadmium
Contact Finish Gold
Contact Finish Thickness 50μin (1.27μm)
Operating Temperature Range -65°C ~ 125°C
Current Rating 5A
Color Green
Contact Form Machined
Housing Material Diallyl Phthalate (DAP), Glass Filled
Contact Material Brass
Win Source Part Number 784864-M24308/3-1F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian M24308/3-1F CAD Model

Description

The Cinch Connectivity Solutions M24308/3-1F is a male pin plug connector that is designed for panel mount.

  • Contact Termination: Solder cup
  • Contact Form: Machined
  • Contact Finish: Gold, 50μin (1.27μm) thick
  • Housing and Shell Material: Steel with yellow chromate plated cadmium
  • Dielectric Material: Diallyl Phthalate (DAP), Glass Filled
  • Connector Type: D-sub
  • Operating Temperature Range: -65°C to 125°C
  • Current Rating: 5A
  • Supply and Demand Status: Limited
