Same model may have multiple batches, images only for reference.

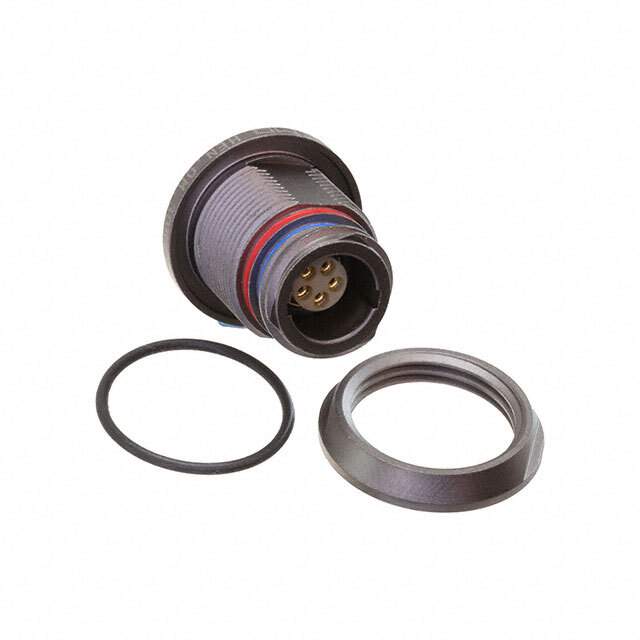

HEN.0M.305.XLNP Real Image
Same model may have multiple batches, images only for reference.

HEN.0M.305.XLNP

Part No HEN.0M.305.XLNP
Manufacturer LEMO
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 5POS GOLD SOLDER / 5 Position Circular Connector Receptacle, Female Sockets Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr LEMO
Series 0M
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 5
Shell Size - Insert 305
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Termination Solder
Fastening Type Threaded
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum Alloy
Shell Finish Nickel
Contact Finish - Mating Gold
Color Gray
Ingress Protection IP68 - Dust Tight, Waterproof
Features Potted
Shielding Shielded
Current Rating (Amps) 6.5A
Temperature Range - Operating -20°C ~ 80°C
Contact Material Bronze
Contact Finish Thickness - Mating 59.0µin (1.50µm)
Insert Material Polyetheretherketone (PEEK)
Applications Aerospace, Automotive, Aviation, Military
Base Product Number HEN.0M
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
California Prop 65 Warning Information
Win Source Part Number 1351651-HEN.0M.305.XLNP
Ultra Librarian 3D Model Ultra Librarian HEN.0M.305.XLNP CAD Model

Description

This 0M series circular connector assembly is a receptacle with female sockets.

  • Series: 0M
  • Connector Type: Circular Connector Assembly
  • Connector Orientation: Receptacle
  • Contact Gender: Female Sockets
  • Number of Positions: 5
  • Fastening Type: Threaded
  • Shell Material: Aluminum Alloy
  • Shell Finish: Nickel
  • Insert Material: Polyetheretherketone (PEEK)
  • Contact Material: Bronze
  • Contact Mating Finish: Gold
  • Contact Finish Thickness: 59.0μin (1.50μm)
  • Shielded: Yes
  • Ingress Protection: IP68
  • Application: Aerospace, Automotive, Aviation, and Military
  • Operating Temperature: -20°C to 80°C
  • Current Rating: 6.5A
  • Backshell Material Plating: None
  • REACH: Unaffected
  • ECCN: EAR99
