7/16P-7/16J TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

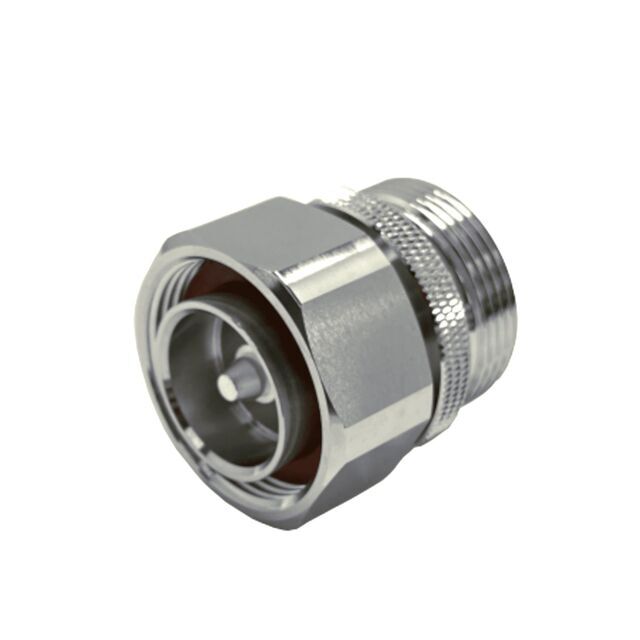

7/16P-7/16J

Part No 7/16P-7/16J
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Adapters
Description Adapter Coaxial Connector 7/16 Jack, Female Socket To 7/16 Plug, Male Pin 50 Ohms
Datasheet
7/16P-7/16J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Adapter Type Plug to Jack
Conversion Type Same Series
Adapter Series 7/16 to 7/16
Center Gender Female to Male
Convert From (Adapter End) 7/16 Jack, Female Socket
Convert To (Adapter End) 7/16 Plug, Male Pin
Impedance 50 Ohms
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Threaded, Threaded
Frequency - Max 6GHz
Ingress Protection Waterproof
Center Contact Plating Silver
Ultra Librarian 3D Model Ultra Librarian 7/16P-7/16J CAD Model
