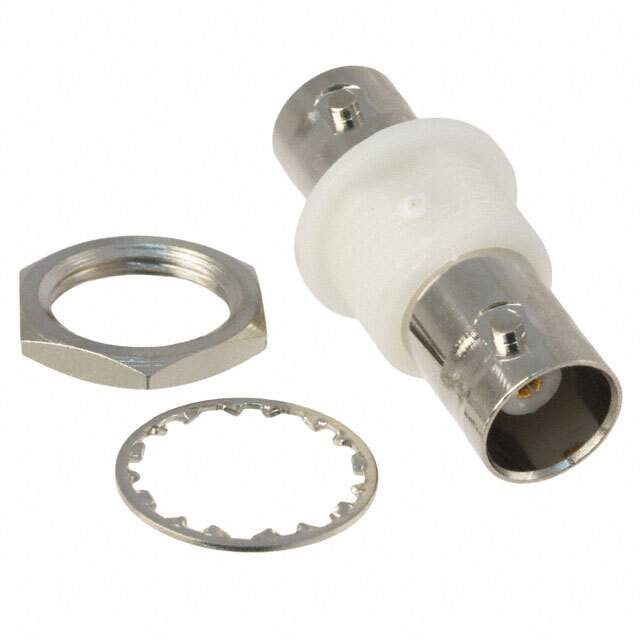

CPAD580 Real Image
Same model may have multiple batches, images only for reference.

CPAD580

Part No CPAD580
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF) - Adapters
Description CONN ADAPT JACK-JACK BNC 50 OHM
Datasheet
CPAD580 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Cinch Connectivity Solutions AIM-Cambridge
Packaging Bulk
Adapter Type Jack to Jack
Conversion Type Same Series
Adapter Series BNC to BNC
Center Gender Female to Female
Convert From (Adapter End) BNC Jack, Female Socket
Convert To (Adapter End) BNC Jack, Female Socket
Impedance 50 Ohm
Style Straight
Mounting Panel Mount
Mounting Feature Bulkhead
Fastening Type Bayonet Lock, Bayonet Lock
Frequency - Max 4GHz
Center Contact Plating Gold
Features Isolated
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Zinc
Body Finish Nickel
Center Contact Material Beryllium Copper
Win Source Part Number 767215-CPAD580
Popularity Medium
Supply and Demand Status Balance
Family Name CP-AD580
Introduction Date April 15, 2002
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CPAD580 CAD Model

Description

This CPAD580 adapter is a jack to jack adapter that is designed for use in BNC to BNC series connectors.

  • Style: Straight
  • Frequency: Up to 4GHz
  • Isolation: Yes
  • Fastening Type: Bayonet Lock
  • Body Material: Zinc
  • Finish: Nickel
  • ECCN: EAR99
  • Family: CP-AD580
  • Packaging: Bulk (3 pieces - connector, lockwasher, nut)
