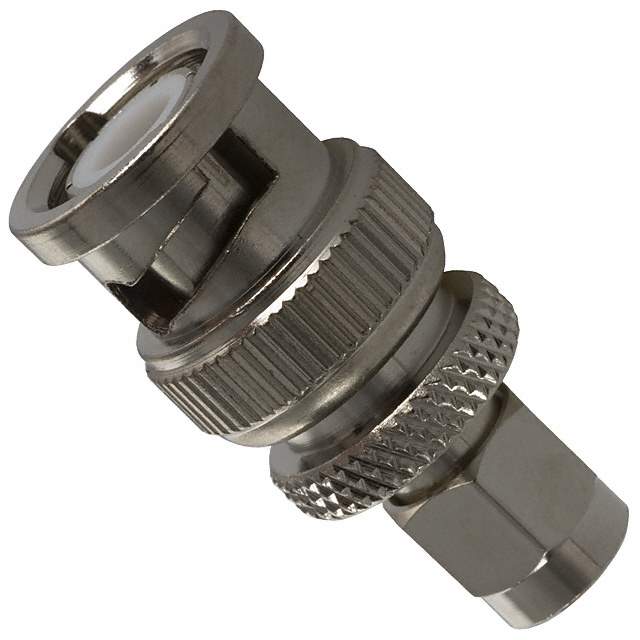

Same model may have multiple batches, images only for reference.

CP-AD582

Get a Quote

Part No	CP-AD582
Manufacturer	Cinch Connectivity Solutions
Catalog	Coaxial Connectors (RF) - Adapters
Description	CONN ADAPT BNC PLUG TO SMA PLUG
Datasheet	CP-AD582 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Cinch Connectivity Solutions AIM-Cambridge
Packaging	Bulk
Part Status	Obsolete(EOL)
Adapter Type	Plug to Plug
Conversion Type	Between Series
Adapter Series	BNC to SMA
Center Gender	Male to Male
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	SMA Plug, Male Pin
Style	Straight
Mounting	Free Hanging (In-Line)
Fastening Type	Bayonet Lock, Threaded
Win Source Part Number	767216-CP-AD582
Popularity	Medium
Supply and Demand Status	Limited
Family Name	CP
Introduction Date	February 20, 2004
ECCN	EAR99
Estimated EOL Date	Not Applicable
Ultra Librarian 3D Model	Ultra Librarian CP-AD582 CAD Model

Alternative Products

Description

The Cinch Connectivity Solutions AIM-Cambridge CP-AD582 Connector is a plug to plug adapter type connector used for connecting BNC plug, male pin to SMA plug, male pin.

Series: CP
Style: Straight
Fastening Type: Bayonet Lock, Threaded
Supply: Limited
RoHS: Compliant
ECCN: EAR99
