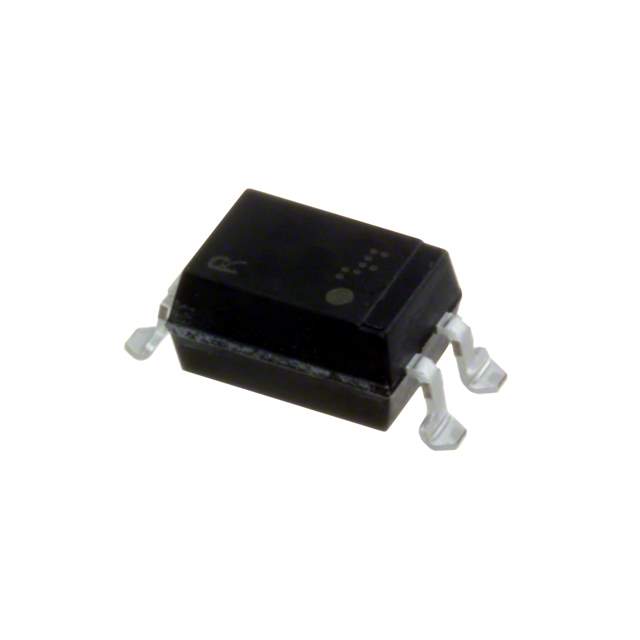

PS2501L-1-F3-A

Name: PS2501L-1-F3-A
Brand: CEL
SKU: 280812
Availability: InStock
Rating: 4.91 (65 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PS2501L-1-F3-A
Manufacturer	CEL
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISOLATOR 5KV TRANS 4SMD / DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD T/R
Datasheet	PS2501L-1-F3-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	CEL
Packaging	Reel - TR
Status	Active
Number of Channels	1
Isolation Voltage	5000Vrms
Minimum DC Current Transfer Ratio	80% @ 5mA
Maximum DC Current Transfer Ratio	600% @ 5mA
Rise and Fall Time	3μs, 5μs
Input Type	DC
Output Type	Transistor
Maximum Output Voltage	80V
Channel Output Current	50mA
Forward Voltage	1.17V
Continuous forward current- Max	80mA
Vce Saturation (Max)	300mV
Temperature Range - Operating	-55°C to 100°C
Mounting	SMD (SMT)
Case / Package	4-SMD
Win Source Part Number	026865-PS2501L-1-F3-A
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Family Name	PS2501L-1
Introduction Date	November 01, 2001
ECCN	EAR99
Country of Origin	Japan
Estimated EOL Date	Not Applicable
Ultra Librarian 3D Model	Ultra Librarian PS2501L-1-F3-A CAD Model

Alternative Products

Description

The PS2501L-1-F3-A is a transistor output optocoupler in 4-SMD package from CEL.

Maximum Forward Voltage: 1.17V
Vce Saturation (max): 300mV
Isolation Voltage: 5000Vrms
Minimum DC Current Transfer Ratio: 80% @ 5mA
Channel Output: Single channel
Maximum Output Voltage: 80V
Channel Output Current: 50mA
Continuous Forward Current-Max: 80mA
Switching Turn-On Time: -
Switching Turn-Off Time: -
Rise Time: 3μs
Fall Time: 5μs
Operating Temperature Range: -55°C to 100°C
