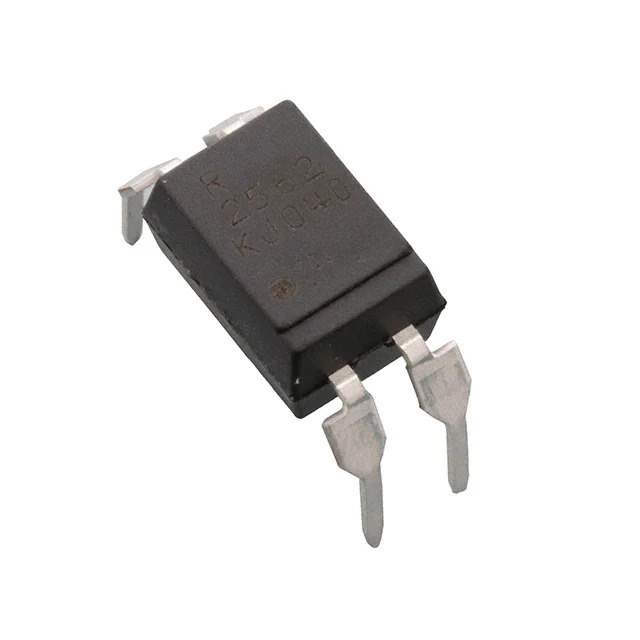

PS2561L1-1 Real Image
Same model may have multiple batches, images only for reference.

PS2561L1-1

Part No PS2561L1-1
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4DIP / Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Datasheet
PS2561L1-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr CEL
Series NEPOC
Package Tube
Product Status Obsolete
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 80% @ 5mA
Current Transfer Ratio (Max) 400% @ 5mA
Rise / Fall Time (Typ) 3µs, 5µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.17V
Current - DC Forward (If) (Max) 80 mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case 4-DIP (0.400", 10.16mm)
Supplier Device Package 4-DIP
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 656860-PS2561L1-1
Ultra Librarian 3D Model Ultra Librarian PS2561L1-1 CAD Model

Description

The PS2561L1-1 is a high-speed optoisolator transistor that offers reliable performance.

  • Maximum Forward Current: 80mA
  • Voltage Forward: 1.17V
  • Rise/Fall Time: 3μs/5μs
  • Current Transfer Ratio: 80% @ 5mA
  • Voltage Isolation: 5000Vrms
  • Channel: Single-channel
  • Package: 4-DIP
  • Operating Temperature: -55°C to 100°C
  • Suitable for: Motor control, power supplies, and digital logic inputs
