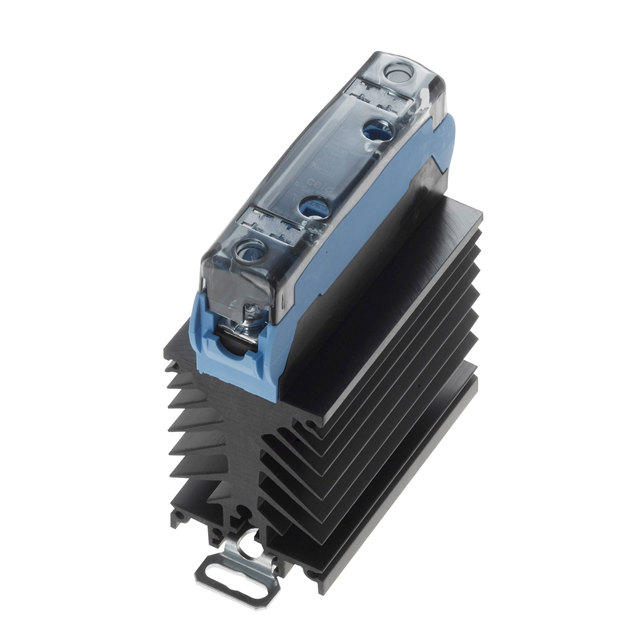

SAM943460 Real Image
Same model may have multiple batches, images only for reference.

SAM943460

Part No SAM943460
Manufacturer Celduc Inc.
Catalog Solid State Relays
Description SSR 35A/12-280VAC/INPUT 3-32VDC/  /  Solid State SPST-NO (1 Form A) Module
Datasheet
SAM943460 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Celduc Inc.
Series celpac 2G®
Package Box
Mounting Type Chassis Mount
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 3 ~ 32VDC
Voltage - Load 12 V ~ 280 V
Load Current 35 A
On-State Resistance (Max) 9.5 mOhms
Package / Case Module
MSL Level 1 (Unlimited)
Other Names 3667-SAM943460
Standard Package 20
Win Source Part Number 1151340-SAM943460
Ultra Librarian 3D Model Ultra Librarian SAM943460 CAD Model

Description

The celpac 2G® solid state relay from Celduc Inc. is a high-performance relay designed for use in a wide range of applications.

  • Circuit Configuration: SPST-NO (1 Form A)
  • On-State Resistance: 9.5 mOhms
  • Load Current: 35 A
  • Voltage Load: 12 V to 280 V
  • Voltage Input: 3 to 32 VDC
  • Output Type: AC, zero cross
  • Mounting: Surface Mountable
  • Package: Module
